01 - Convection Oven, Literature

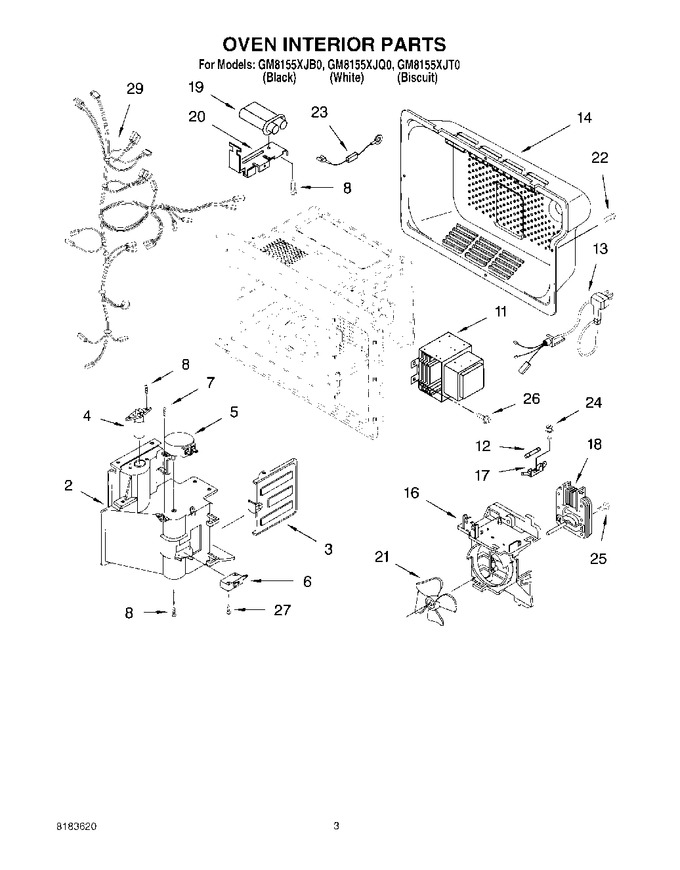

02 - Oven Interior


03 - Oven Cavity


04 - Base Plate


05 - Latch Board


06 - Control Panel


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8183563		Air Duct		Appelez-nous	-
3	8183573		Bracket, Damper		Appelez-nous	-
4	WP8183592		Lamp   (Replaces: 8183592)				$ 41.09
5	8183586		Motor, Stirrer		Appelez-nous	-
6	4392027		Micro Switch   (Replaces: 8183561)				$ 138.41
7	4358188		Screw		Appelez-nous	-
8	4358381		Screw		Appelez-nous	-
11	W10859575		Magnetron   (Replaces: 8172000)				$ 361.62
12	WP8183507		Fuse   (Replaces: 8183507)				$ 18.33
13	8183584		Power Cord		Appelez-nous	-
14	8183569		Cover, Back		Appelez-nous	-
16	8183579		Guide, Suction		Appelez-nous	-
17	8183578		Holder, Fuse		Appelez-nous	-
18	8183585		Motor, Fan		Appelez-nous	-
19	8183536		Capacitor, H.v.		Appelez-nous	-
20	4359161		Bracket, H.v.c.		Appelez-nous	-
21	4358379		Fan		Appelez-nous	-
22	4358192		Screw		Appelez-nous	-
23	WP8205489		Cable, Diode   (Replaces: 8171879)				$ 58.19
24	4358451		Screw		Appelez-nous	-
25	4358190		Screw		Appelez-nous	-
26	4344826		Screw   (Replaces: 4358489)				$ 14.31
27	4358357		Screw		Appelez-nous	-
29	8183590		Harness, Main		Appelez-nous	-
