SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Oven Door Parts
03 - Oven Door Parts

Diagram for 04 - Latch Parts
04 - Latch Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Microwave Door Parts
07 - Microwave Door Parts

Diagram for 08 - Microwave Compartment Parts
08 - Microwave Compartment Parts

Diagram for 09 - Top Venting Parts, Optional Parts
09 - Top Venting Parts, Optional Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4450356 Gasket Appelez-nous -
3 WP4449745 Screw   (Replaces: 4449745) Special Order $ 6.74

3 WP3400832 Screw   (Replaces: 8281179) In-Stock Immediately $ 6.98

3 8302320 Microcomputer Appelez-nous -
4 8301848 Board, Mtrzd Latch Special Order $ 184.23

10 8300411 Control Panel Assy W/membrane Switch (black Model) Special Order $ 212.49

10 8300536 Control Panel Assy W/membrane Switch (biscuit Model) Appelez-nous -
10 8300410 Control Panel Assy W/membrane Switch (white Model) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

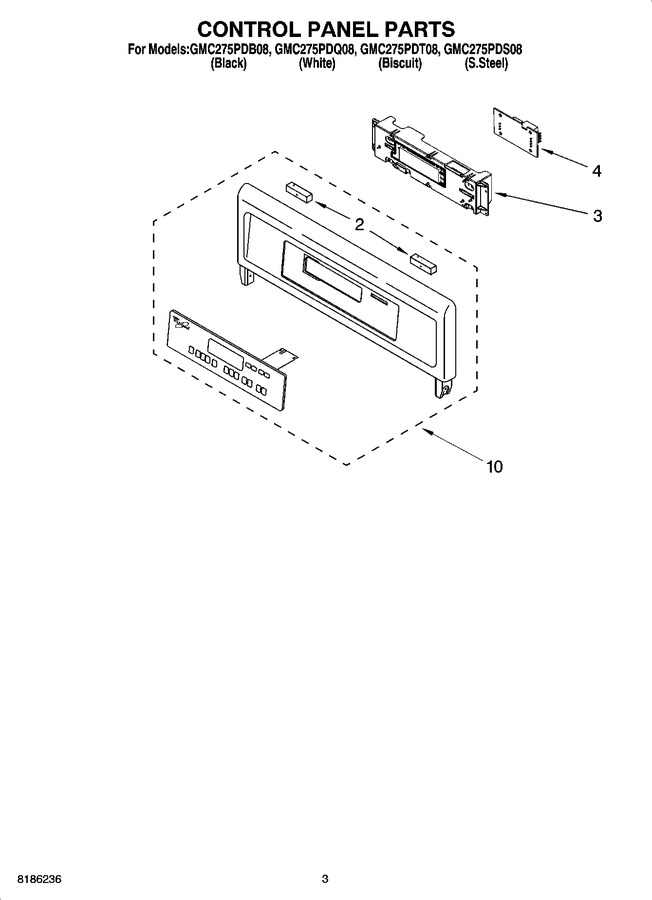

Diagram for GMC275PDQ08
