01 - Oven Parts


02 - Control Panel Parts

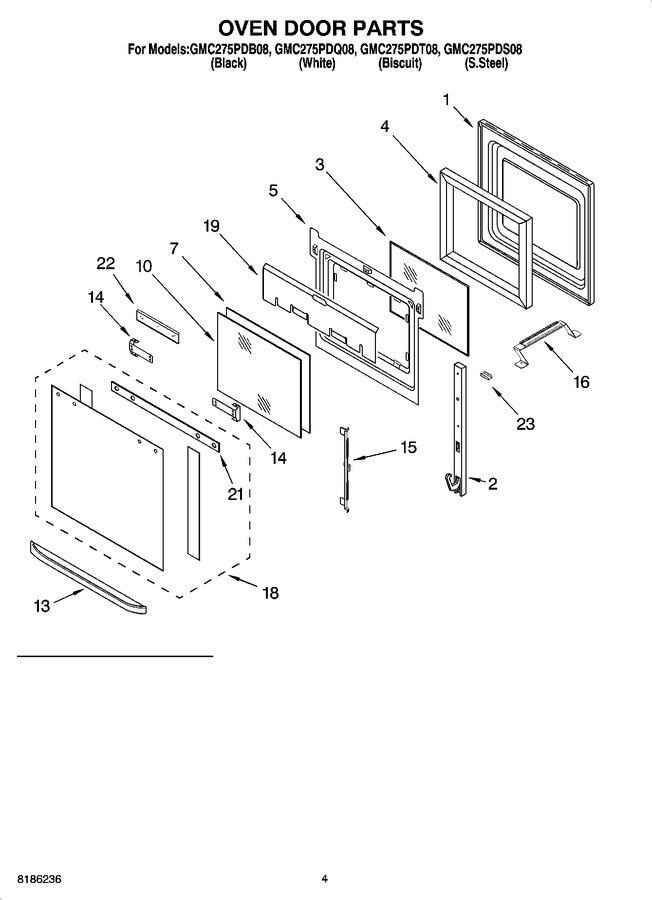

03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Microwave Compartment Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4457126		Door Liner		Appelez-nous	-
2	9760569		Hinge, Door (right Hand)   (Replaces: 8300569)				$ 101.50
2	WP9760571		Hinge, Door (right Hand)   (Replaces: 8300571)			Immediately	$ 98.15
2	WP9760572		Hinge, Door (left Hand (black Stainless Model))   (Replaces: 8300572)				$ 95.97
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	9760570		Hinge, Door (left Hand (white & Black Models))   (Replaces: 8300570)				$ 100.91
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4457131		Retainer, Glass				$ 31.95
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9759224		Glass, Inner				$ 81.28
10	9759227		Glass. Inner				$ 81.36
13	8300255		Door Handle (biscuit Model)		Appelez-nous	-
13	4448406		Door Handle (white Model)		Appelez-nous	-
13	4448405		Door Handle (black Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
18	8300912		Assy., Door Glass (black Model)				$ 129.30
18	8300905		Assy., Door Glass (s.steel Model)		Appelez-nous	-
18	8300904		Door Glass Assy (biscuit)		Appelez-nous	-
18	8300911		Assy., Door Glass (white Model)				$ 126.26
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	8300819		Seal, Door Top		Appelez-nous	-
22	4457113		Shield, Heat (bottom)				$ 33.29
22	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
23	4450864		Retainer, Clip (white & Biscuit Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
