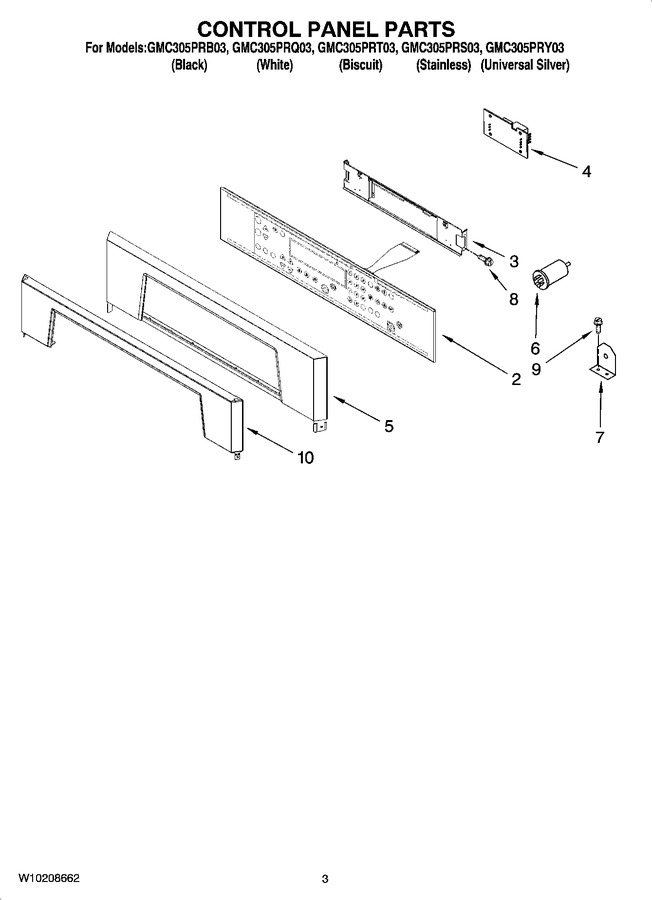

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8303948		Assembly, Switch (black)		Appelez-nous	-
2	8303949		Assembly, Switch (white)		Appelez-nous	-
2	8303950		Assembly, Switch (biscuit)		Appelez-nous	-
2	8304152		Assembly, Switch (silver)		Appelez-nous	-
3	W10153086		Backer, Control		Appelez-nous	-
4	8301848		Board, Mtrzd Latch				$ 184.23
5	WP8302848		Panel, Control (black)   (Replaces: 8302848)				$ 269.84
5	8304153		Panel, Control (apollo Gray)		Appelez-nous	-
5	8302849		Panel, Control (white)				$ 117.72
5	8302850		Panel, Control (biscuit)				$ 112.28
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
10	W10208806		Trim, Panel (for Stainless Models Only)		Appelez-nous	-
