SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts

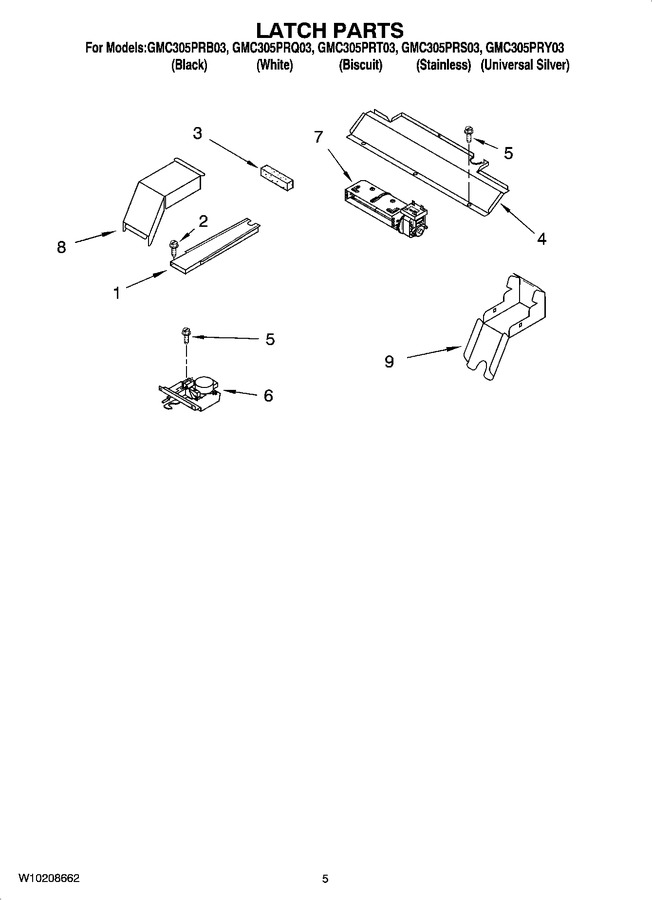

04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 90.01
2	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
3	W10491987		Seal, Foam   (Replaces: 4451758)			Immediately	$ 6.98
4	4450408		Baffle, Rear		Appelez-nous	-
5	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
6	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 295.79
7	WPW10016550		Blower   (Replaces: W10016550)			Immediately	$ 255.27
8	4455178		Vent, Top				$ 13.30
9	4455177		Vent, Bottom				$ 9.77

    View Diagram in Separate Window       Print Part List
