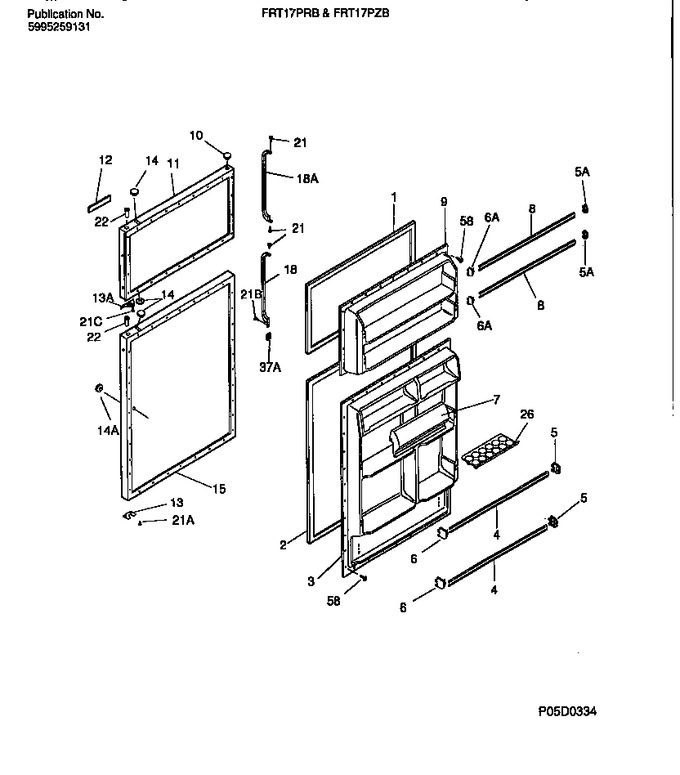

02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732402		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, (2)   (Replaces: 215516215)				$ 54.58
5	5303325990		Support-door Rack, Rh   (Replaces: 5303206644)			Immediately	$ 17.01
6	5303325991		Support-door Rack, Lh   (Replaces: 5303206645)				$ 17.01
7	5303304570		Door-dairy		Appelez-nous	-
8	215474019		Rack-door, (2)		Appelez-nous	-
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917393		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917391		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215482143		Handle-door, 17.37``, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, Almond, Cr		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*79080	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215482132		Handle-door, 17.02``, Almond		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2, Frzr Dr Stop   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480202		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-
5A	5303323480		Support-door Rack, Rh   (Replaces: 5303017377)				$ 14.18
6A	5303323481		Support-door Rack, Lh   (Replaces: 5303017380)			Immediately	$ 14.18
