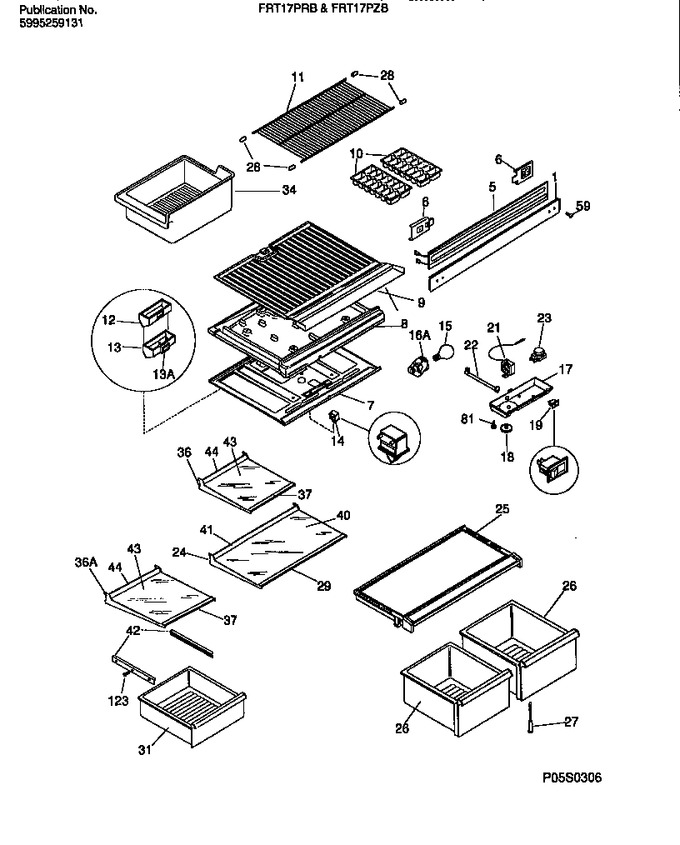

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252502		Mullion, Almond		Appelez-nous	-
5	218271401		Heater-mullion				$ 135.66
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3018881		Top Panel-refr		Appelez-nous	-
8	5303018899		Divider, Styrofoam		Appelez-nous	-
9	5303001537		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303283107		Shelf-freezer, Fixed/flat Width, Wire				$ 155.82
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919125		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5349001603		Cover-crisper Pan		Appelez-nous	-
26	5303295929		Pan-crisper, 11.34`` Wide		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	215919401		Trim-full Shelf, Front		Appelez-nous	-
31	5303295932		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919124		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919408		Trim-meat Kpr Shelf, 11.32``, Front		Appelez-nous	-
40	5303300713		Glass-full Shelf		Appelez-nous	-
41	215919801		Trrim-shelf, 23.30``, Rear		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
43	5303299769		Glass-shelf, 11.28`` X 15.57``		Appelez-nous	-
44	215919808		Trim-shelf, 11.32``, Rear		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
11A	218159700		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension,air Deflector,w/insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
36A	215919102		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
42A	5303209273		Hanger-pan/basket, Rh (non-illustrated)				$ 60.06
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
