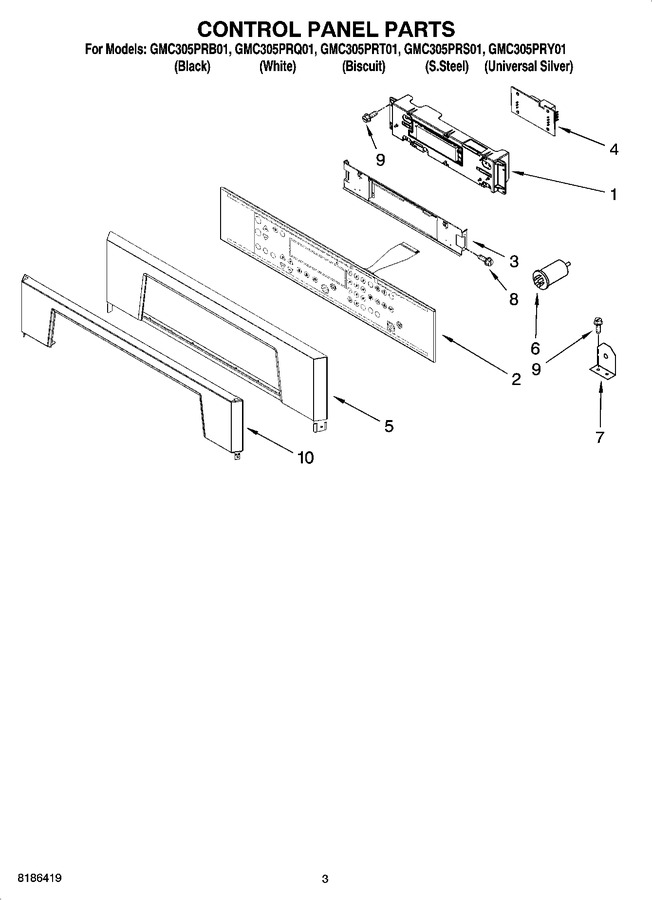

02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303819		Assy, Control		Appelez-nous	-
2	8303949		Assy, Switch (white)		Appelez-nous	-
2	8303950		Assy, Switch (biscuit)		Appelez-nous	-
2	8304152		Assy, Switch (silver)		Appelez-nous	-
2	8303948		Assy, Switch (black)		Appelez-nous	-
3	8304161		Backer, Control		Appelez-nous	-
4	8301848		Board, Mtrzd Latch				$ 184.23
5	8302849		Control Panel (white)				$ 117.72
5	8304153		Control Panel (apollo Gray)		Appelez-nous	-
5	WP8302848		Control Panel (black)   (Replaces: 8302848)				$ 269.84
5	8302850		Control Panel (biscuit)				$ 112.28
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
10	8302877		Trim-panel (use On S.steel Model Only)		Appelez-nous	-
