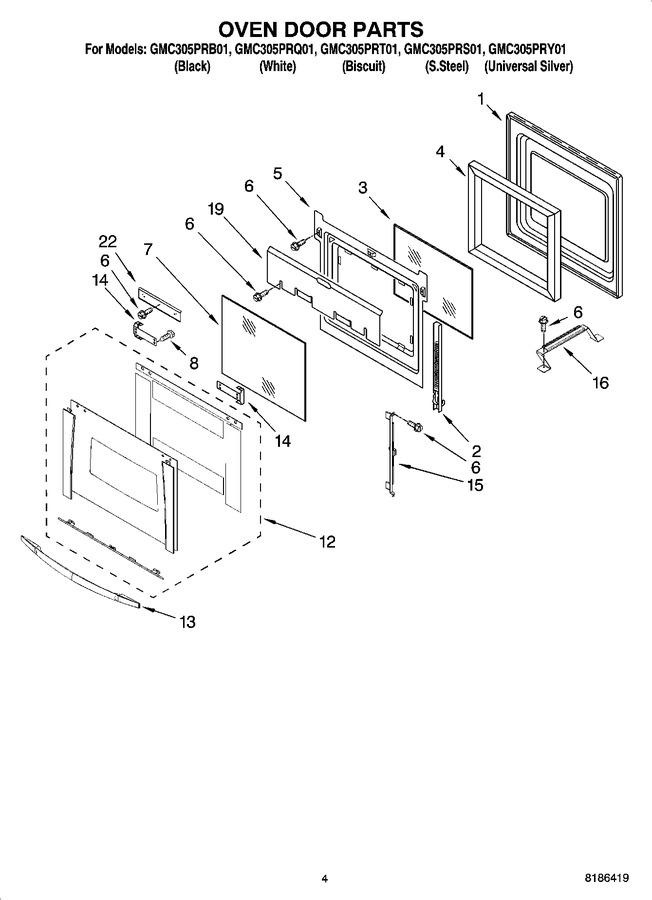

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9759413 | Door Liner (Replaces: 8303700) |
|
$ 317.54 | |||||
| 2 | WP9760577 | Hinge, Door (r.hand (yellow)) (Replaces: 9760577) |
|
Immediately | $ 99.89 | ||||
| 2 | WP9760574 | Hinge, Door (lh (s.steel Only)) (Replaces: 9760580) |
|
Immediately | $ 60.36 | ||||
| 2 | WP9760579 | Hinge, Door (rh (s.steel Only)) (Replaces: 9760579) |
|
Immediately | $ 64.35 | ||||
| 2 | WP9760578 | Hinge, Door (l.hand (yellow)) (Replaces: 9760578) |
|
Immediately | $ 98.96 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 182.86 | |||||
| 4 | WP4451722 | Insulation, Door And Bottom Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 5 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 8 | W10276642 | Screw (Replaces: 4451040) |
|
$ 5.49 | |||||
| 12 | 8303307 | Door Glass (white Model) |
|
- | |||||
| 12 | 8303301 | Door Glass (black Model) |
|
- | |||||
| 12 | 8303289 | Door Glass (black Stainless) |
|
- | |||||
| 12 | 8303311 | Door Glass (biscuit) |
|
- | |||||
| 12 | 8304178 | Door Glass (silver) |
|
- | |||||
| 13 | 8303164 | Handle, Door (s.steel) |
|
- | |||||
| 13 | 8302813 | Handle, Door (black) |
|
$ 76.76 | |||||
| 13 | 8302814 | Handle, Door (white) |
|
$ 96.22 | |||||
| 13 | 8302815 | Handle, Door (biscuit) |
|
- | |||||
| 14 | 8303167 | Bracket, Handle |
|
- | |||||
| 15 | WP9759229 | Bracket (2nd Glass) (Replaces: 9759229) |
|
$ 160.71 | |||||
| 16 | 9759230 | Bracket (3rdglass) |
|
$ 36.30 | |||||
| 19 | 4457104 | Shield, Heat (Replaces: 4457103) |
|
$ 33.62 | |||||
| 22 | 4457114 | Shield, Heat-bottom |
|
$ 186.68 |
