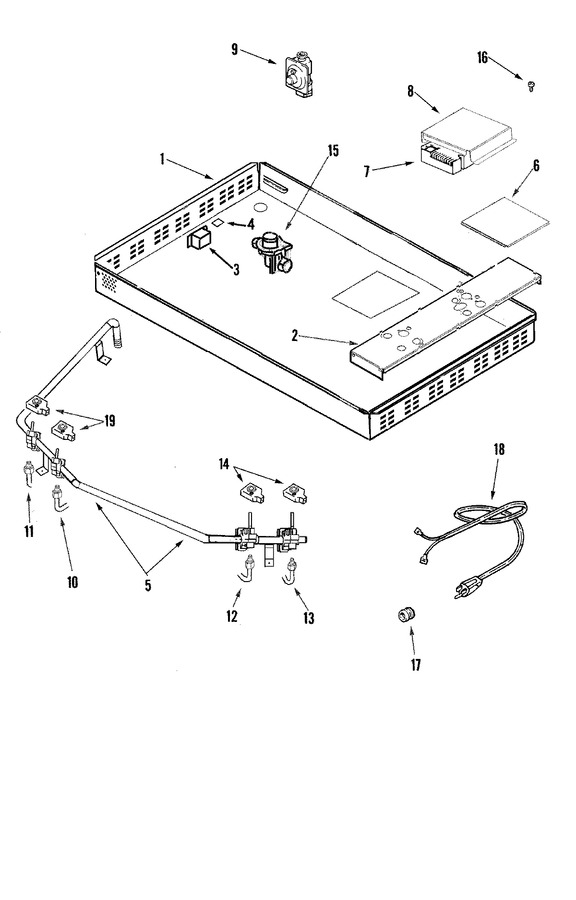

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203541		Box, Burner	13	Appelez-nous	-
1	74009546		Bottom, Burner Box	10	Appelez-nous	-
2	74009545		Bracket, Orifice Holder	10	Appelez-nous	-
3	74006339		Bracket, Holddown	10	Appelez-nous	-
4	74009564		Tape, Adhesive (1`` X 1 13/16``)	10	Appelez-nous	-
5	74007997		Pipe Manifold/valve Assembly	10	Appelez-nous	-
6	74007768		Panel, Module	10	Appelez-nous	-
7	WPW10475147		Module, Spark   (Replaces: 71002783)	10		Immediately	$ 214.42
8	74005933		Cover, Spark Module	10	Appelez-nous	-
9	W11087445		Regulator, Pressure   (Replaces: 74007747)	10		Immediately	$ 177.34
10	74007755		Tube, Burner (lf)	10	Appelez-nous	-
11	74007756		Tube, Burner (lr)	10			$ 67.52
12	74007757		Tube, Burner (rf)	10			$ 31.24
13	74007758		Tube, Burner (rr)	10	Appelez-nous	-
14	WP74007774		Switch, Burner (rt)   (Replaces: 74007774)	10			$ 122.99
15	WP7527P033-60		Holder, Orifice (10.5k)   (Replaces: 74007998)	10			$ 65.54
15	WP7527P004-60		Holder, Orifice (15k)   (Replaces: 74007766)	10			$ 72.90
15	WP7527P002-60		Holder, Orifice (9.2k)   (Replaces: 74007764)	10			$ 72.90
15	74009553		Holder, Orifice (5k)	10			$ 75.27
16	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
17	550707		Bushing - Strain Relief	10	Appelez-nous	-
18	74007817		Cord, Power	10	Appelez-nous	-
19	WP74007753		Switch, Burner (lt)   (Replaces: 74007753)	10			$ 121.78
