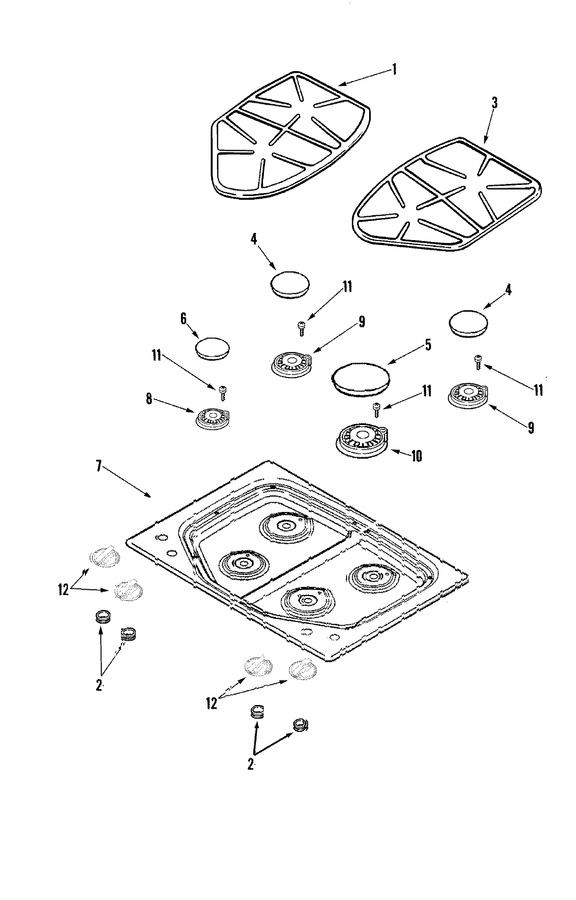

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Supplemental Information
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203486 | Grate, Burner (l.hand) | 12 |
|
$ 67.74 | ||||
| 1 | 74009549 | Grate (blk-lt) | 10 |
|
$ 108.12 | ||||
| 2 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 3 | 74009550 | Grate (blk-rt) | 10 |
|
$ 109.22 | ||||
| 3 | W10203484 | Grate, Burner (r.hand) | 12 |
|
$ 93.41 | ||||
| 4 | 74007749 | Cap, Burner (med-blk) | 10 |
|
$ 42.04 | ||||
| 5 | 74007750 | Cap, Burner (lrg-blk) | 10 |
|
- | ||||
| 6 | WP8284669 | Cap, Burner (smr-blk) (Replaces: 74007748) | 10 |
|
Immediately | $ 64.79 | |||
| 7 | 74009555 | Top, Main (stl) | 10 |
|
- | ||||
| 8 | 74007734 | Burner Assembly (small) | 10 |
|
$ 107.79 | ||||
| 8 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 9 | 74007735 | Burner Assembly (lrg) | 10 |
|
Immediately | $ 102.76 | |||
| 10 | WP74009336 | Ignitor (Replaces: 74009336) | 10 |
|
Immediately | $ 24.30 | |||
| 10 | 74007736 | Burner Assembly (x-lrg) | 10 |
|
Immediately | $ 105.36 | |||
| 11 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 12 | WP7733P410-60 | Knob, Burner (chr) (Replaces: 74007733) | 10 |
|
Immediately | $ 22.35 |
