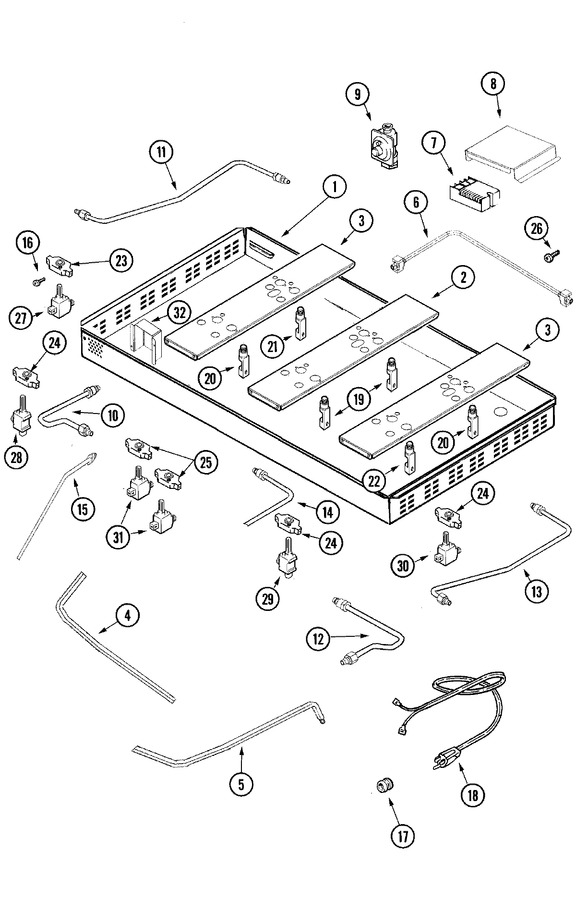

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400202 | Screw (Replaces: Y706197) | 10 |
|
$ 13.65 | ||||
| 1 | 74005969 | Box, Burner | 10 |
|
- | ||||
| 1 | Y706186 | Strap, Hold Down | 10 |
|
- | ||||
| 2 | 74005976 | Bracket, Sealed Burner (cntr) | 10 |
|
- | ||||
| 3 | 74005952 | Bracket, Sealed Burner | 10 |
|
- | ||||
| 4 | 74005971 | Pipe, Manifold (rt) | 10 |
|
- | ||||
| 5 | 74005970 | Pipe, Manifold (lt) | 10 |
|
- | ||||
| 6 | 74005972 | Tube, Crossover | 10 |
|
- | ||||
| 7 | WP71002749 | Module, Spark (Replaces: 71002749) | 10 |
|
$ 300.87 | ||||
| 8 | 74005933 | Cover, Spark Module | 10 |
|
- | ||||
| 9 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 10 | 74005948 | Tube, Burner (lf) | 10 |
|
- | ||||
| 11 | 74005949 | Tube, Burner (lr) | 10 |
|
- | ||||
| 12 | 74005950 | Tube, Burner (rf) | 10 |
|
- | ||||
| 13 | 74005951 | Tube, Burner (rr) | 10 |
|
- | ||||
| 14 | 74005974 | Tube, Burner (cf) | 10 |
|
- | ||||
| 15 | 74005975 | Tube, Burner (cr) | 10 |
|
- | ||||
| 16 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 17 | 705833 | Relief, Strain | 10 |
|
- | ||||
| 18 | 3188867 | Cord, Power (Replaces: 74005927) | 10 |
|
$ 168.08 | ||||
| 19 | 71002720 | Holder W/orifice (6.5k) | 10 |
|
- | ||||
| 19 | 71002728 | Orifice, Lp (4500) | 10 |
|
$ 8.51 | ||||
| 20 | 71002727 | Orifice, Lp (6000) | 10 |
|
$ 5.33 | ||||
| 20 | 74005977 | Holder W/orifice (9.1k) | 10 |
|
- | ||||
| 21 | 74005978 | Holder W/orifice (10.5k) | 10 |
|
- | ||||
| 21 | WP7509P062-60 | Orifice, Lp (8000) (Replaces: 71002726) | 10 |
|
$ 6.26 | ||||
| 22 | 7507P241-60 | Holder W/orifice (12k) (Replaces: 71002723) | 10 |
|
$ 74.54 | ||||
| 22 | WP7509P062-60 | Orifice, Lp (8000) (Replaces: 71002726) | 10 |
|
$ 6.26 | ||||
| 23 | 74005953 | Switch, Igniter | 10 |
|
$ 109.43 | ||||
| 24 | WP74005954 | Switch, Igniter (Replaces: 74005954) | 10 |
|
$ 117.71 | ||||
| 25 | 74005979 | Switch, Igniter | 10 |
|
- | ||||
| 26 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 27 | 74005944 | Valve, Top Burner | 10 |
|
- | ||||
| 28 | 74005945 | Valve, Top Burner | 10 |
|
$ 172.63 | ||||
| 29 | 74005946 | Valve, Top Burner | 10 |
|
$ 113.91 | ||||
| 30 | 74005947 | Valve, Top Burner | 10 |
|
- | ||||
| 31 | 74005973 | Valve, Top Burner | 10 |
|
- | ||||
| 31 | 7724P004-60 | Cover, Burner Valve | 10 |
|
- | ||||
| 32 | 74006339 | Bracket, Holddown | 11 |
|
- |
