01 - Body

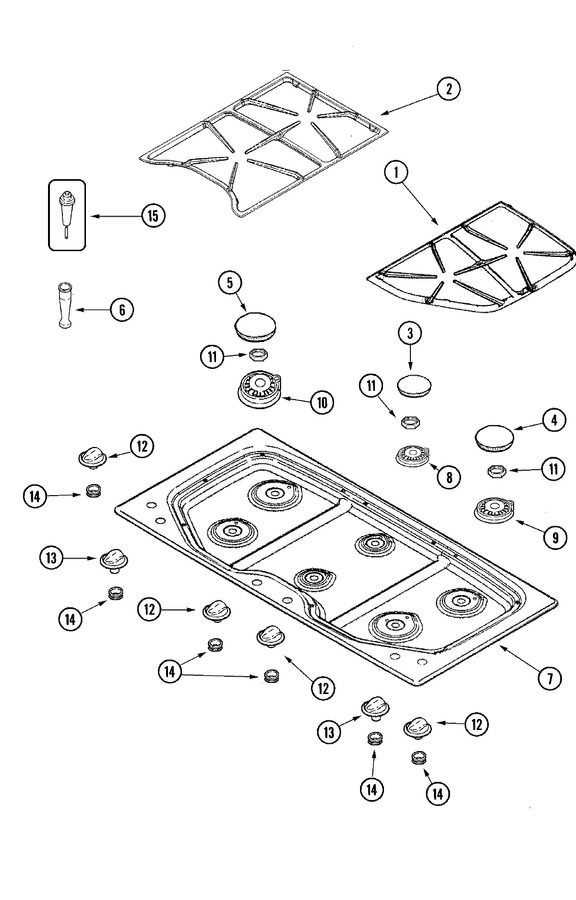

02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005937 | Grate (rt-gry) | 10 |
|
- | ||||
| 1 | 74005938 | Grate (lt-gry) | 10 |
|
- | ||||
| 2 | 74005981 | Grate, (cntr-gry) | 10 |
|
- | ||||
| 3 | 74005966 | Cap, Burner (sml-gry) | 10 |
|
- | ||||
| 3 | 74007192 | Cap, Burner (smr-mt Gry) | 13 |
|
$ 35.69 | ||||
| 4 | 74007197 | Cap, Burner (med-mt Gry) | 13 |
|
$ 33.03 | ||||
| 4 | 74005967 | Cap, Burner (med-gry) | 10 |
|
- | ||||
| 5 | 74005968 | Cap, Burner (lrg-gry) | 10 |
|
- | ||||
| 5 | 74007204 | Cap, Burner (lg-mt Gry) | 13 |
|
$ 58.08 | ||||
| 6 | WP7538P003-60 | Venturi (Replaces: 71002747) | 10 |
|
$ 88.55 | ||||
| 7 | 74005982 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | WP7540P028-60 | Burner, Base (smr) (Replaces: 74007181) | 13 |
|
$ 48.41 | ||||
| 8 | WP7540P028-60 | Base, Burner (Replaces: 74005955) | 10 |
|
$ 48.41 | ||||
| 9 | 74005956 | Base, Burner | 10 |
|
- | ||||
| 10 | 74005957 | Base, Burner | 10 |
|
- | ||||
| 10 | 74007183 | Burner, Base (lrg) | 13 |
|
- | ||||
| 11 | WP7103P178-60 | Nut, Mounting (Replaces: 71002746) | 10 |
|
$ 6.26 | ||||
| 12 | 74005942 | Knob, Burner (wht-shrt Shaft) | 10 |
|
- | ||||
| 13 | 74005941 | Knob, Burner (wht-long Shaft) | 10 |
|
$ 29.85 | ||||
| 14 | WP74005934 | Grommet (Replaces: 74005934) | 10 |
|
$ 7.66 | ||||
| 15 | 74005964 | Harness, Spark Lead (lt) | 10 |
|
- | ||||
| 15 | WP7432P109-60 | Igniter (Replaces: 71002724) | 10 |
|
$ 47.83 | ||||
| 15 | 74005961 | Harness, Main Wire | 10 |
|
- | ||||
| 15 | 74005963 | Harness, Spark Lead (rt) | 10 |
|
- | ||||
| 16 | 74005988 | Kit, Lp Orifice | 10 |
|
- | ||||
| 17 | 74005527 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- |
