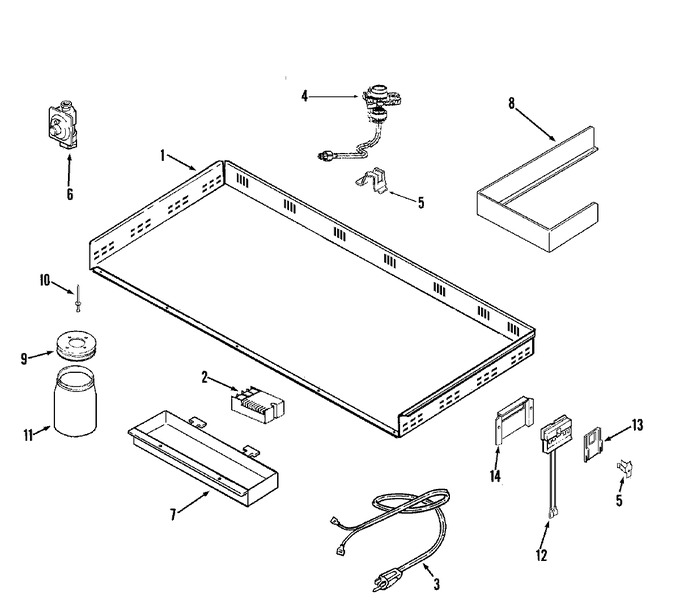

01 - Burner Box
02 - Control Panel/manifold Pipe
03 - Supplemental Information
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009639 | Box, Burner | 10 |
|
- | ||||
| 2 | WP71002749 | Module, Spark (Replaces: 71002749) | 10 |
|
$ 300.87 | ||||
| 2 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 74009639 | Box, Burner | 10 |
|
- | ||||
| 4 | 74009806 | Holder, Orifice (rr-9.2k) | 10 |
|
$ 67.51 | ||||
| 4 | 74009807 | Holder, Orifice (lf/rf-17k) | 10 |
|
$ 73.91 | ||||
| 4 | 74009809 | Holder, Orifice (lr/cr-5k) | 10 |
|
- | ||||
| 4 | 74009811 | Holder, Orifice (cf-9.2k) | 10 |
|
- | ||||
| 5 | Y706064 | Clip, Ground | 10 |
|
- | ||||
| 5 | WPW10068250 | Screw (Replaces: 706112) | 10 |
|
$ 3.66 | ||||
| 6 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 10 |
|
Immediately | $ 215.01 | |||
| 7 | Y04100254 | Relief, Strain | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | 71003146 | Cover, Module | 10 |
|
- | ||||
| 8 | 71003154 | Support, Griddle----na | 10 |
|
- | ||||
| 9 | Y707870 | Lid, Jar | 10 |
|
- | ||||
| 10 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 10 |
|
$ 12.14 | ||||
| 11 | WPY707869 | Jar, Drain (Replaces: Y707869) | 10 |
|
$ 61.43 | ||||
| 12 | 71003151 | Block, Terminal | 10 |
|
- | ||||
| 13 | 71003152 | Spacer, Terminal Block | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | 71003153 | Cover, Terminal Block | 10 |
|
- |
