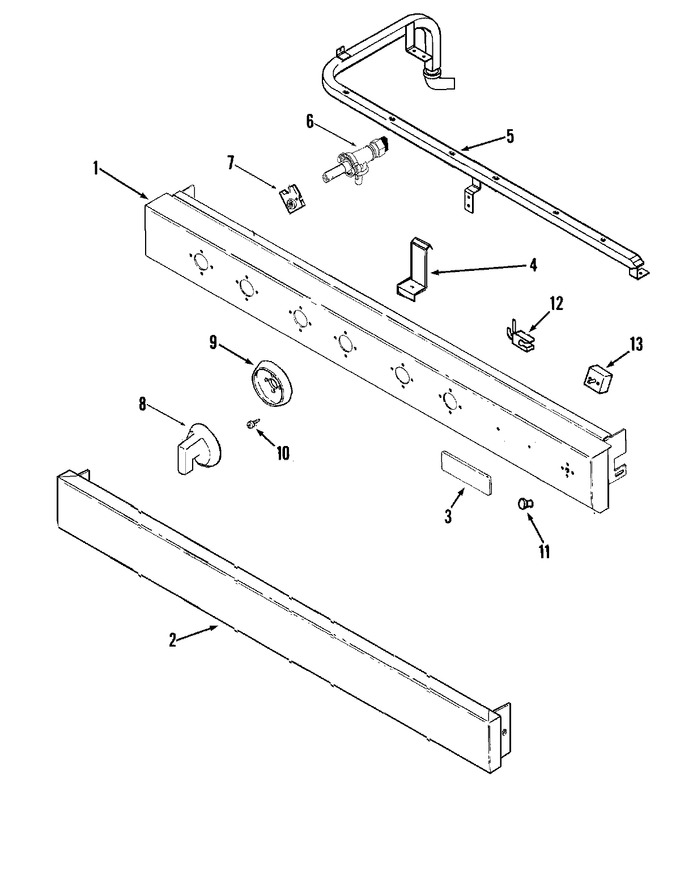

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009626 | Panel, Control | 10 |
|
- | ||||
| 1 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 1 | 71001054 | Nut, Retainer (1/4) | 10 |
|
- | ||||
| 2 | 74007000 | Panel, Lower Control----nla | 10 |
|
- | ||||
| 3 | 7103P166-60 | Palnut (Replaces: 715500) | 10 |
|
$ 15.91 | ||||
| 3 | 74006889 | Nameplate (stl) | 10 |
|
$ 43.24 | ||||
| 4 | 74007008 | Bracket, Control Panel | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 74009785 | Pipe, Manifold | 10 |
|
- | ||||
| 6 | 12002277 | Screw, Valve (Replaces: 74009427) | 10 |
|
$ 272.78 | ||||
| 6 | 74009786 | Valve, Burner (5k) | 10 |
|
$ 283.79 | ||||
| 6 | 74009787 | Valve, Burner (9.2k) | 10 |
|
- | ||||
| 6 | 74009788 | Valve, Burner (17k) | 10 |
|
- | ||||
| 7 | 74009789 | Switch, Valve | 10 |
|
$ 103.81 | ||||
| 8 | 74009634 | Knob | 10 |
|
$ 236.09 | ||||
| 8 | WPW10175692 | Knob (Replaces: 74009633) | 10 |
|
Immediately | $ 48.74 | |||
| 9 | 74009631 | Bezel | 10 |
|
$ 49.51 | ||||
| 9 | 74009632 | Bezel, Knob (fan Switch_ | 10 |
|
$ 61.67 | ||||
| 10 | W11233072 | Screw (no.8ab) (Replaces: 71001183) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 12 | 7407P100-60 | Light, Indicator | 10 |
|
- | ||||
| 13 | 74009805 | Switch, Infinite | 10 |
|
$ 29.74 |
