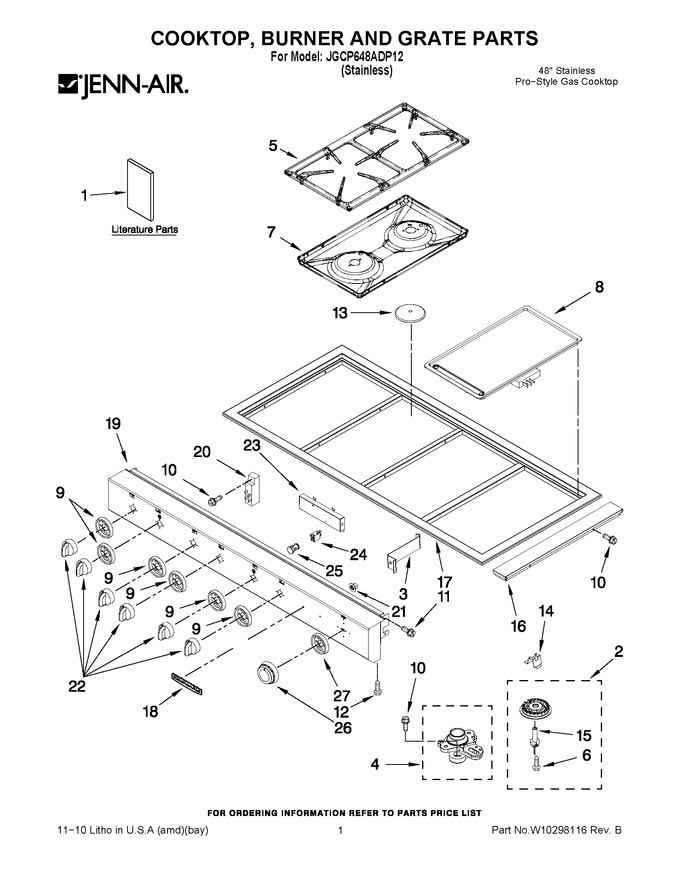

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8119P070-60 | Wiring Diagram |
|
- | |||||
| 1 | 8112P342-60 | Use & Care Guide |
|
- | |||||
| 1 | 8101P657-60 | Installation Instructions |
|
- | |||||
| 1 | 8101P547-60 | Lp Converstion, Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 74007736 | Orifice (lf & Rf) (Replaces: 7505P306-60) |
|
Immediately | $ 105.36 | ||||
| 2 | 74007735 | Orifice (rr) (Replaces: 7505P305-60) |
|
Immediately | $ 102.76 | ||||
| 2 | 74007734 | Orifice (lr) (Replaces: 7505P304-60) |
|
$ 107.79 | |||||
| 3 | 3801F689-51 | Bracket, Control |
|
$ 10.14 | |||||
| 4 | 74009806 | Orifice Holder (rr) (Replaces: 7527P049-60) |
|
$ 67.51 | |||||
| 4 | 7527P052-60 | Orifice Holder (cf) |
|
- | |||||
| 4 | 7527P050-60 | Orifice Holder (lf & Rf) |
|
- | |||||
| 4 | 7527P051-60 | Orifice Holder (lr & Cr) |
|
- | |||||
| 5 | 7518P417-60 | Grate, Burner |
|
$ 83.63 | |||||
| 6 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 7 | 3424F034-09 | Drip, Bowl (medium) |
|
$ 36.78 | |||||
| 7 | 3424F032-09 | Drip, Bowl (small) |
|
- | |||||
| 7 | 3424F033-09 | Drip, Bowl (large) |
|
- | |||||
| 8 | 7406P160-60 | Module, Griddle |
|
- | |||||
| 9 | 7740P150-60 | Bezel, Lever |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 11 | W11233072 | Screw (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 12 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 12.62 | ||||
| 13 | 7504P204-60 | Cap, Burner (15k (rf & Lf)) |
|
- | |||||
| 13 | WP8284669 | Cap, Burner (5k (lr & Cr)) (Replaces: 7504P202-60) |
|
Immediately | $ 64.79 | ||||
| 13 | 7504P165-60 | Cap, Burner (12.5k (rr & Cf)) |
|
- | |||||
| 14 | 3801F842-51 | Bracket, Orifice |
|
- | |||||
| 15 | WP74009336 | Ignitor, Cooktop (Replaces: 7432P121-60) |
|
Immediately | $ 24.30 | ||||
| 16 | 3608F132-50 | Trim, Console |
|
$ 60.77 | |||||
| 17 | 7746P067-60 | Cooktop |
|
- | |||||
| 18 | 7719P087-60 | Nameplate |
|
- | |||||
| 19 | 7720P493-60 | Assembly, Console |
|
- | |||||
| 20 | WP71002749 | Module, Spark (Replaces: 7431P039-60) |
|
$ 300.87 | |||||
| 21 | 7103P166-60 | Nut, Hex |
|
$ 15.91 | |||||
| 22 | WPW10175692 | Knob, Control (Replaces: W10175692) |
|
Immediately | $ 48.74 | ||||
| 23 | 4005F547-51 | Cover, Module |
|
- | |||||
| 24 | 7407P100-60 | Light, Indicator |
|
- | |||||
| 25 | WP7730P011-60 | Lens, Indicator (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 26 | 7737P349-60 | Knob, Griddle |
|
- | |||||
| 27 | 7740P146-60 | Bezel, Griddle |
|
- |
