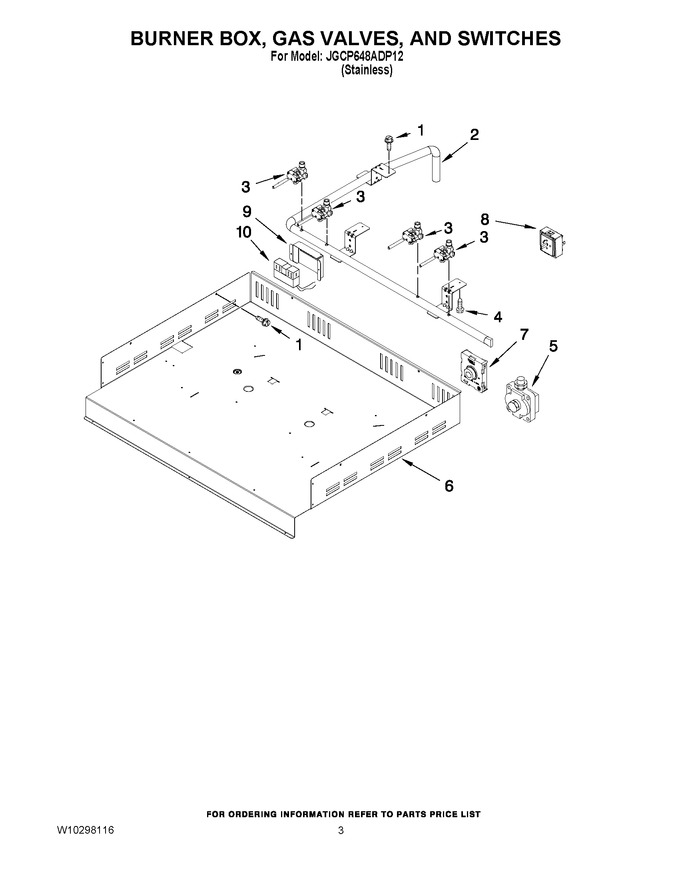

02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 2 | 7513P362-60 | Manifold |
|
- | |||||
| 3 | 7502P486-60 | Valve, Burner (12.5k (rr & Cf)) |
|
- | |||||
| 3 | 7502P485-60 | Valve, Burner (5k (lr & Cr)) |
|
- | |||||
| 3 | 7502P487-60 | Valve, Burner (15k (rf & Lf)) |
|
- | |||||
| 4 | 12002277 | Screw (Replaces: 7101P640-60) |
|
$ 272.78 | |||||
| 5 | W11106948 | Regulator,pressure (Replaces: 7510P075-60) |
|
Immediately | $ 215.01 | ||||
| 6 | 4011F433-51 | Burner Box |
|
- | |||||
| 7 | 7403P919-60 | Switch, Valve |
|
- | |||||
| 8 | 7403P851-60 | Switch, Infinite |
|
- | |||||
| 9 | 4005F548-80 | Cover, Terminal Block |
|
- | |||||
| 10 | 7408P064-60 | Block, Terminal |
|
- |
