View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Body
03 - Gas Controls
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

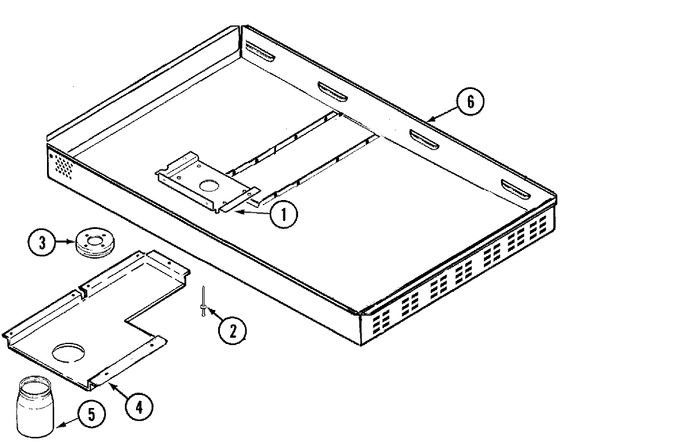

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006611 | Cover, Gas | 11 |
|
$ 7.82 | ||||
| 1 | 74006147 | Cover, Gas | 10 |
|
- | ||||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | Y707664 | Washer | 10 |
|
- | ||||
| 2 | WP210720 | Rivet (Replaces: 701662) | 10 |
|
$ 12.14 | ||||
| 3 | Y707870 | Lid, Jar ----s | 10 |
|
- | ||||
| 3 | M0282009 | Nut,square (Replaces: Y707124) | 10 |
|
$ 12.06 | ||||
| 3 | Y707121 | Screw | 10 |
|
- | ||||
| 4 | 74006148 | Baffle, Burner Box | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | WPY707869 | Jar, Drain (Replaces: Y707869) | 10 |
|
$ 61.43 | ||||
| 6 | Y052721 | Nut (Replaces: Y704553) | 10 |
|
$ 21.38 | ||||
| 6 | 74005867 | Box, Burner | 10 |
|
- | ||||
| 6 | 71003131 | Screw | 10 |
|
Immediately | $ 6.07 |
