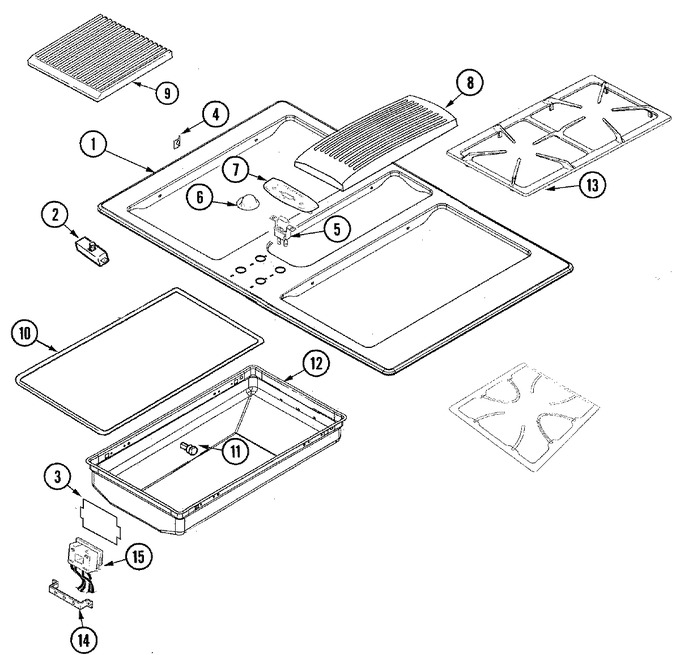

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Body
03 - Gas Controls
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005869 | Top, Main (wht) | 10 |
|
- | ||||
| 2 | WP7450P012-60 | Switch, Snap (Replaces: 74006094) | 10 |
|
Immediately | $ 135.54 | |||
| 2 | 74006095 | Insulator, Switch | 10 |
|
- | ||||
| 2 | 74006890 | Harness, Pan Switch | 13 |
|
- | ||||
| 2 | 74006100 | Harness, Pan Switch | 10 |
|
- | ||||
| 3 | 74005866 | Insulator, Ceramic Block | 10 |
|
- | ||||
| 4 | Y700503 | Clip, Retainer | 10 |
|
- | ||||
| 4 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 5 | W10341820 | Switch, Fan (wht) (Replaces: 71001563) | 10 |
|
$ 274.08 | ||||
| 5 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | W11233071 | Knob, Valve (wht) (Replaces: 74006142) | 10 |
|
$ 62.60 | ||||
| 7 | W10341820 | Trim, Fan Control (wht) (Replaces: 74006146) | 10 |
|
$ 274.08 | ||||
| 8 | 74005793 | Grill, Air (wht) | 10 |
|
- | ||||
| 9 | 71003267 | Grate, Grill | 10 |
|
$ 157.17 | ||||
| 10 | Y704979 | Seal, Pan | 10 |
|
- | ||||
| 11 | 71001764 | Pin, Locator | 10 |
|
$ 8.68 | ||||
| 11 | Y052721 | Nut (Replaces: Y704553) | 10 |
|
$ 21.38 | ||||
| 12 | 74006089 | Pan, Grill (rt) | 10 |
|
- | ||||
| 12 | 74006090 | Pan, Grill (lt) | 10 |
|
- | ||||
| 13 | 814323 | Foot, Grate (rubber) (Replaces: 74007573) | 10 |
|
Immediately | $ 10.28 | |||
| 13 | 74005899 | Grate, Burner (gray) | 10 |
|
- | ||||
| 14 | 7112P150-60 | Clip, Terminal Block (Replaces: 74006093) | 10 |
|
- | ||||
| 15 | 74006153 | Receptacle W/harness | 10 |
|
- | ||||
| 17 | 16008409 | Cookbook----na | 10 |
|
- | ||||
| 17 | 74005528 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 8111P530-60 | Manual, Use & Care | 18 |
|
- |
