01 - Cooktop Parts
02 - Control Panel Parts

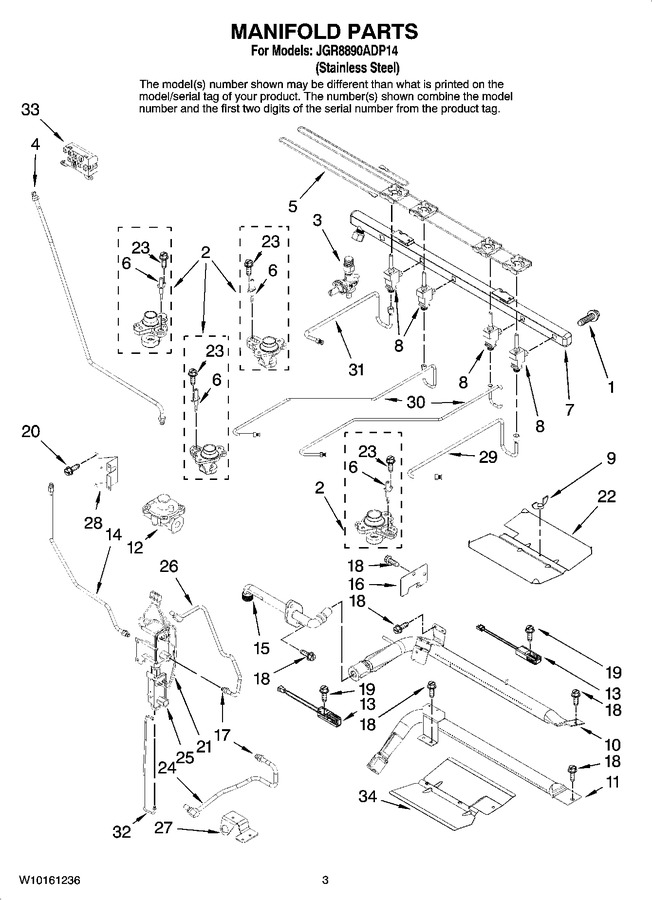

03 - Manifold Parts
04 - Chassis Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009416 | Screw, Valve (4) |
|
- | |||||
| 2 | WP74007961 | Holder, Orifice (lr & Rf) (Replaces: 74007961) |
|
$ 100.54 | |||||
| 2 | WP7527P021-60 | Holder, Orifice (lf) (Replaces: 74007962) |
|
$ 103.25 | |||||
| 2 | WP7527P023-60 | Holder, Orifice (rr) (Replaces: 74007816) |
|
$ 98.03 | |||||
| 3 | 12002271 | Valve, Shut Off (incl. Screw) |
|
- | |||||
| 4 | 74010098 | Tubing, Manifold To Valve |
|
$ 159.79 | |||||
| 5 | 12002792 | Harness, Igniter (incl. Switches) |
|
$ 203.79 | |||||
| 6 | WP8523793 | Ignitor, Top Burner (4) (Replaces: 74007473) |
|
Immediately | $ 36.15 | ||||
| 7 | 74009902 | Pipe, Manifold |
|
- | |||||
| 8 | 12002268 | Valve (rr) |
|
$ 177.73 | |||||
| 8 | 12002269 | Valve (lr & Rf) |
|
$ 192.06 | |||||
| 8 | 74011867 | Valve (lf) |
|
$ 158.80 | |||||
| 9 | 7103P030-60 | Nut (Replaces: 790431) |
|
$ 6.37 | |||||
| 10 | 74010093 | Burner, Broiler |
|
- | |||||
| 11 | 74010094 | Burner, Bake |
|
$ 86.45 | |||||
| 12 | 74007387 | Regulator, Pressure |
|
$ 143.87 | |||||
| 13 | W11596211 | Igniter (bake) (Replaces: 7432P143-60) |
|
Immediately | $ 84.02 | ||||
| 13 | 74007966 | Igniter (broil) |
|
$ 96.10 | |||||
| 14 | 74011292 | Tubing (broiler Fitting To Valve) |
|
- | |||||
| 15 | 74010612 | Fitting, Broiler |
|
$ 44.13 | |||||
| 16 | 4005F421-45 | Cover,igniter |
|
- | |||||
| 17 | 74007451 | Nut, Mounting |
|
$ 8.05 | |||||
| 18 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 20 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 21 | 74011297 | Harness, Triple Valve |
|
- | |||||
| 22 | 3601F358-45 | Baffle, Broil Burner (Replaces: 74010086) |
|
$ 218.28 | |||||
| 23 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 24 | 74011296 | Tubing, Bake Burner (incl. Orifice) |
|
- | |||||
| 25 | WP74011290 | Valve, Bake & Broil (Replaces: 74011290) |
|
$ 295.97 | |||||
| 26 | 74011293 | Tubing, Broil Burner (incl. Orifice) |
|
$ 85.07 | |||||
| 27 | 74007426 | Bracket, Orfice |
|
- | |||||
| 28 | 74007448 | Bracket, Regulator |
|
- | |||||
| 29 | 74009240 | Tubing (rf) |
|
- | |||||
| 30 | 74009242 | Tubing (lr & Lf) |
|
$ 154.23 | |||||
| 31 | 74010097 | Tubing (rr) |
|
- | |||||
| 32 | 74011291 | Tubing, Manifold To Valve |
|
- | |||||
| 33 | 74009098 | Module, Spark |
|
$ 305.10 | |||||
| 34 | 74007406 | Baffle, Bake Burner |
|
- | |||||
| NI | 5789A602-60 | Spuds, Lp Gas (kit Of 4) |
|
$ 43.94 |
