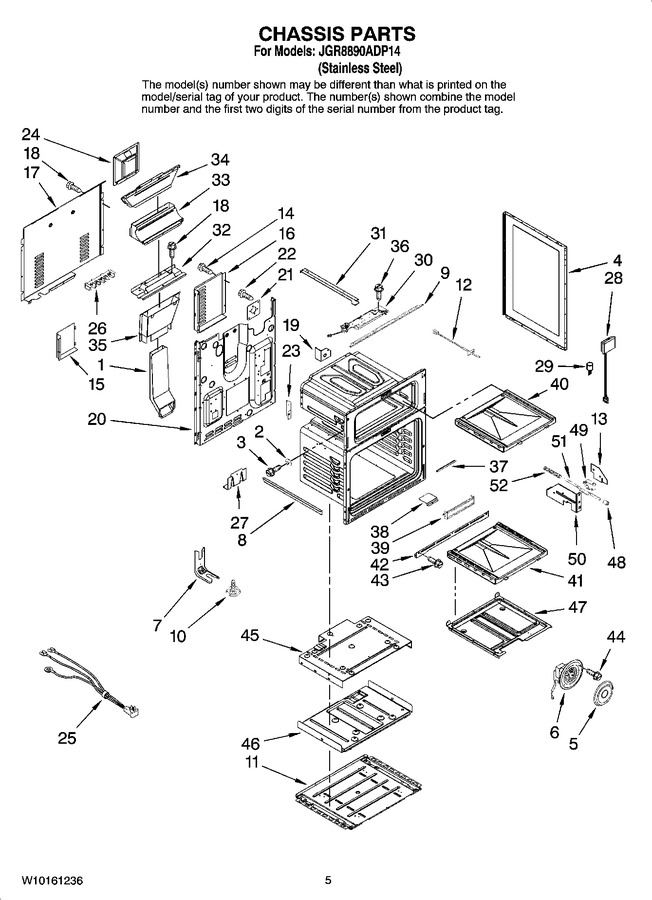

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74007374		Extension, Lower Vent		Appelez-nous	-
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 7.07
3	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
4	74003283		Panel, Side (2)		Appelez-nous	-
5	74010119		Plate, Convection		Appelez-nous	-
6	74011171		Fan, Convection		Appelez-nous	-
7	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)			Immediately	$ 4.69
8	74007427		Spacer, Side Panel (long)				$ 8.95
9	74003384		Bracket, Cooktop		Appelez-nous	-
10	W11665456		Foot, Leveler (4)   (Replaces: 74002373)			Immediately	$ 25.30
11	74009962		Base, Gemini		Appelez-nous	-
12	12001655		Sensor, Oven (lower Oven)   (Replaces: 74004944)			Immediately	$ 41.01
12	WP74011433		Sensor, Oven (upper Oven)   (Replaces: 74011433)				$ 216.97
13	74001872		Insulator, Switch		Appelez-nous	-
14	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
15	74010120		Cover, Conv. Motor		Appelez-nous	-
16	74010121		Cover, Bottom Wire		Appelez-nous	-
17	74007431		Cover, Upper Wire		Appelez-nous	-
18	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
19	74007447		Bracket (right)		Appelez-nous	-
19	74007446		Bracket (left)		Appelez-nous	-
20	74011298		Back, Main		Appelez-nous	-
21	74007450		Plate, Broil Fitting		Appelez-nous	-
22	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 12.62
23	74007500		Support, Upr Oven (left)		Appelez-nous	-
23	74007499		Support, Upr Oven (right)		Appelez-nous	-
24	74011858		Retainer, Insulation		Appelez-nous	-
25	74011890		Cord, Power		Appelez-nous	-
26	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 31.65
27	74005500		Support, Lwr Oven		Appelez-nous	-
28	74009970		Light Assy. (2)				$ 47.69
29	WP74009925		Bulb, Light (2)   (Replaces: 74009925)			Immediately	$ 20.37
30	74007429		Latch, Door Lock				$ 319.39
31	W10163332		Bottom, Burner Box (left)		Appelez-nous	-
31	W10163331		Bottom, Burner Box (right)		Appelez-nous	-
32	74007377		Baffle, Vent Seal		Appelez-nous	-
33	74007376		Extension, Upper Vent		Appelez-nous	-
34	74007955		Flue Assy., Upper		Appelez-nous	-
35	74007956		Flue Assy., Lower		Appelez-nous	-
36	74003975		Screw				$ 12.02
37	74007428		Seal, Front Frame				$ 31.46
38	74010102		Cover, Burner Opening (2)		Appelez-nous	-
39	74007383		Baffle, Lower Oven Vent		Appelez-nous	-
40	74010085		Bottom, Upper Oven		Appelez-nous	-
41	2205F051-19		Bottom, Lower Oven   (Replaces: 74007382)				$ 197.38
42	74007436		Trim, Kickplate		Appelez-nous	-
43	WP98008545		Screw (2)   (Replaces: 74009537)				$ 15.94
44	74005401		Screw				$ 5.33
45	74007577		Cover, Bottom Insulation		Appelez-nous	-
46	74007443		Retainer, Bottom Insulation		Appelez-nous	-
47	74010101		Pan, Bake (lower)		Appelez-nous	-
47	74010103		Pan, Bake (upper)		Appelez-nous	-
48	74001631		Bumper, Door Light				$ 5.22
49	74004536		Switch, Light				$ 115.26
50	74001632		Bracket, Switch		Appelez-nous	-
51	74003562		Rod, Light Switch		Appelez-nous	-
52	74001629		Spring				$ 15.03
NI	74007440		Insulation, Wrap (upper Oven)				$ 130.93
NI	74010089		Insulation, Wrap (lower Oven)		Appelez-nous	-
NI	74010090		Insulation, Back (upper Oven)		Appelez-nous	-
NI	74010091		Insulation, Back (lower Oven)				$ 73.67
