01 - Body
02 - Door/drawer (stl)
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:

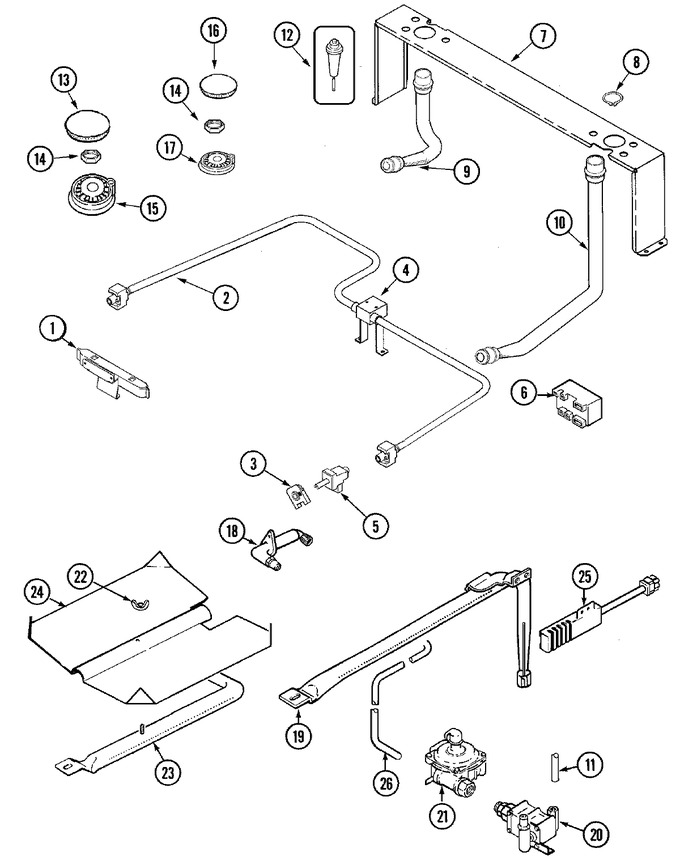

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74006023 | Pipe, Manifold | 10 |
|
- | ||||
| 2 | 74006024 | Tubing, Crossover(w/t Fitting) | 10 |
|
- | ||||
| 3 | 74005997 | Harness, Valve Switch (rt) | 10 |
|
$ 48.65 | ||||
| 3 | WP74005954 | Switch, Valve (Replaces: 74006025) | 10 |
|
$ 117.71 | ||||
| 3 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 3 | 74005998 | Harness, Valve Switch (lt) | 10 |
|
$ 31.24 | ||||
| 4 | 74006026 | Support, T-fitting | 10 |
|
- | ||||
| 4 | 74006027 | Screw | 10 |
|
- | ||||
| 5 | 74006029 | Valve, Top Burner (6.5) | 10 |
|
- | ||||
| 5 | 74006030 | Valve, Top Burner (12k) | 10 |
|
- | ||||
| 5 | 12002343 | Valve, Top Burner (9.1k) (Replaces: 74006031) | 10 |
|
$ 68.84 | ||||
| 5 | 74006028 | Valve, Top Burner (10.5k) | 10 |
|
- | ||||
| 5 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 6 | WPW10475147 | Module, Spark (Replaces: 71002783) | 10 |
|
Immediately | $ 214.42 | |||
| 7 | 74005992 | Bracket, Venturi | 10 |
|
- | ||||
| 8 | 74005993 | Ring, Retaining | 10 |
|
- | ||||
| 9 | 74006016 | Venturi, Burner (rf) | 10 |
|
- | ||||
| 9 | 74006018 | Venturi, Burner (lf) | 10 |
|
- | ||||
| 10 | 74006017 | Venturi, Burner (rr) | 10 |
|
- | ||||
| 10 | 74006019 | Venturi, Burner (lr) | 10 |
|
- | ||||
| 11 | 74004408 | Tubing (3/8``) | 10 |
|
- | ||||
| 12 | WP7432P109-60 | Igniter (Replaces: 71002724) | 10 |
|
$ 47.83 | ||||
| 13 | 74007203 | Cap, Burner (lrg-blk) | 10 |
|
$ 74.04 | ||||
| 14 | 74006032 | Nut, Burner Base | 10 |
|
- | ||||
| 15 | 74007186 | Burner, Base (lrg) | 10 |
|
$ 35.91 | ||||
| 16 | 74007191 | Cap, Burner (smr-mt Blk) | 10 |
|
- | ||||
| 16 | 74007196 | Cap, Burner (med-mt Blk) | 10 |
|
$ 31.27 | ||||
| 17 | 74007185 | Burner, Base (sm) | 10 |
|
- | ||||
| 17 | 74007184 | Burner, Base (sim) | 10 |
|
$ 33.62 | ||||
| 18 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 10 |
|
Immediately | $ 7.69 | |||
| 18 | 74004307 | Plate, Broil Fitting | 10 |
|
- | ||||
| 18 | 7507P088-60 | Fitting, Broil Burner | 10 |
|
- | ||||
| 19 | 74003960 | Burner, Bake | 10 |
|
$ 90.29 | ||||
| 19 | 3807F446-45 | Support, Burner | 10 |
|
- | ||||
| 20 | 74006034 | Valve, Oven | 10 |
|
$ 262.77 | ||||
| 21 | 74007796 | Bracket, Regulator Support | 10 |
|
- | ||||
| 21 | WP74006035 | Regulator, Pressure (Replaces: 74006035) | 10 |
|
$ 264.65 | ||||
| 22 | 7103P030-60 | Nut, Wing | 10 |
|
$ 6.37 | ||||
| 23 | 74004076 | Burner, Broil | 10 |
|
- | ||||
| 24 | 74009231 | Baffle, Broil Burner | 15 |
|
- | ||||
| 24 | 3601F217-47 | Baffle, Broil Burner | 10 |
|
- | ||||
| 25 | 4005F421-45 | Cover,igniter | 10 |
|
- | ||||
| 25 | 74007498 | Igniter, Oven (Replaces: 7432P075-60) | 10 |
|
Immediately | $ 78.40 | |||
| 26 | 74006000 | Tube, Regulator Supply | 10 |
|
- | ||||
| 27 | 74007017 | Harness, Wire (spark) | 10 |
|
$ 31.64 |
