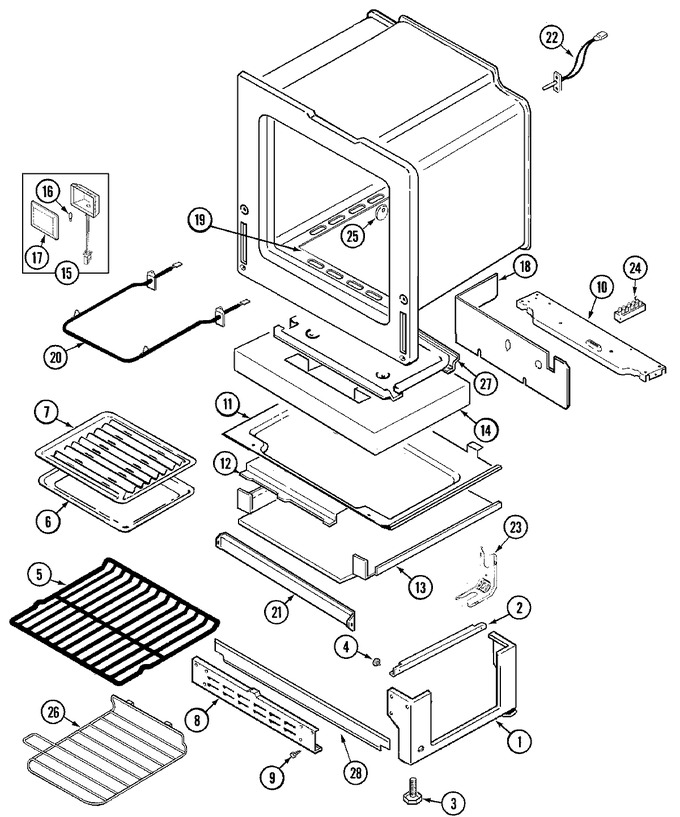

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74005772		Pedestal, Side	10	Appelez-nous	-
2	74003565		Runner, Drawer	10	Appelez-nous	-
3	W11665456		Leg, Leveling   (Replaces: 74002557)	10		Immediately	$ 25.30
4	74005231		Shaft, Storage Drawer Roller	10			$ 9.23
4	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
4	WP74004078		Roller, Drawer   (Replaces: 74004078)	10		Immediately	$ 10.70
5	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
6	Y3401F02019		Pan, Broil	10	Appelez-nous	-
7	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
8	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74005464		Support, Valve/regulator	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74004296		Retainer, Bottom Insulation	10	Appelez-nous	-
12	3604F204-51		Shield, Heat	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	3604F205-51		Shield, Drawer	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74006591		Shield, Warming Drawer	10	Appelez-nous	-
14	74003503		Insulation, Oven	10	Appelez-nous	-
15	74005773		Halogen Lamp Assy	10	Appelez-nous	-
15	74011220		Light Asy, Hal0gen	16			$ 51.79
16	W10124350		Not Required Part Or See Note	16	Appelez-nous	-
16	WP74009925		Bulb, Halogen   (Replaces: 74004458)	10		Immediately	$ 20.37
17	WP74004607		Lens, Cover   (Replaces: 74004607)	10			$ 20.09
18	74005465		Cover, Valve/regulator	10	Appelez-nous	-
19	3601F239-47		Baffle, Oven Bottom	10	Appelez-nous	-
19	74002377		Clip, Oven Bottom	10	Appelez-nous	-
19	5504M004-19		Bottom, Oven Assy.	10	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74003908		Element, Broil	10	Appelez-nous	-
21	74001219		Baffle, Oven Front	10	Appelez-nous	-
22	12001655		Sensor, Oven (short)   (Replaces: 74004944)	10		Immediately	$ 41.01
23	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74005564)	10		Immediately	$ 4.69
23	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
24	74006037		Block, Terminal	10	Appelez-nous	-
25	702929		Button, Plug	10	Appelez-nous	-
26	74003590		Rack, Half (flush Conv. Cover)	10	Appelez-nous	-
27	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
27	74004465		Pan, Bake Burner	10	Appelez-nous	-
28	74005723		Shield, Front Frame (blk)	10	Appelez-nous	-
28	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
