SELECT A DIAGRAM

01 - Body


02 - Control Panel/top Assembly


03 - Door (ser Pre 10)


04 - Door (ser Pre 11)


05 - Gas Controls


06 - Oven/base


07 - Supplemental Information


08 - Warming Drawer


09 - Wiring Information

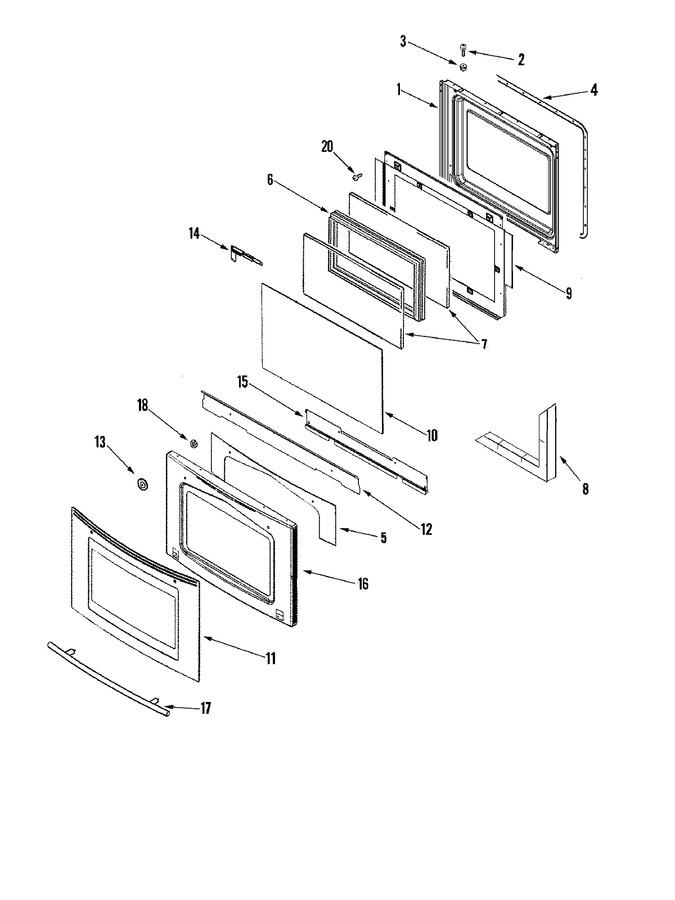

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003642		Lining, Door	10	Appelez-nous	-
2	WP74009541		Screw (bsq)   (Replaces: 74009541)	10			$ 6.26
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
5	74011509		Insulation, Door	10			$ 31.64
6	74003644		Frame, Glass	10	Appelez-nous	-
7	74003645		Glass, Inner	10		Immediately	$ 162.53
8	74003647		Insulation, Oven Door	10	Appelez-nous	-
9	74011339		Baffle, Oven Door	10	Appelez-nous	-
10	74010231		Glass, Door (inner/coated)	10	Appelez-nous	-
11	74011512		Glass Asy, Door (bsq)	10	Appelez-nous	-
12	74011049		Shield, Door	10	Appelez-nous	-
13	74009194		Washer, Handle	10			$ 18.96
14	74011504		Retainer, Glass (rt)	10	Appelez-nous	-
14	74011503		Retainer, Glass (lt)	10	Appelez-nous	-
15	74007215		Retainer, Door Glass	10	Appelez-nous	-
16	74011644		Frame, Door (bsq)	10	Appelez-nous	-
17	WP74008625		Handle, Door (ss)   (Replaces: 74008625)	10			$ 229.64
18	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	10		Immediately	$ 6.98

    View Diagram in Separate Window       Print Part List
