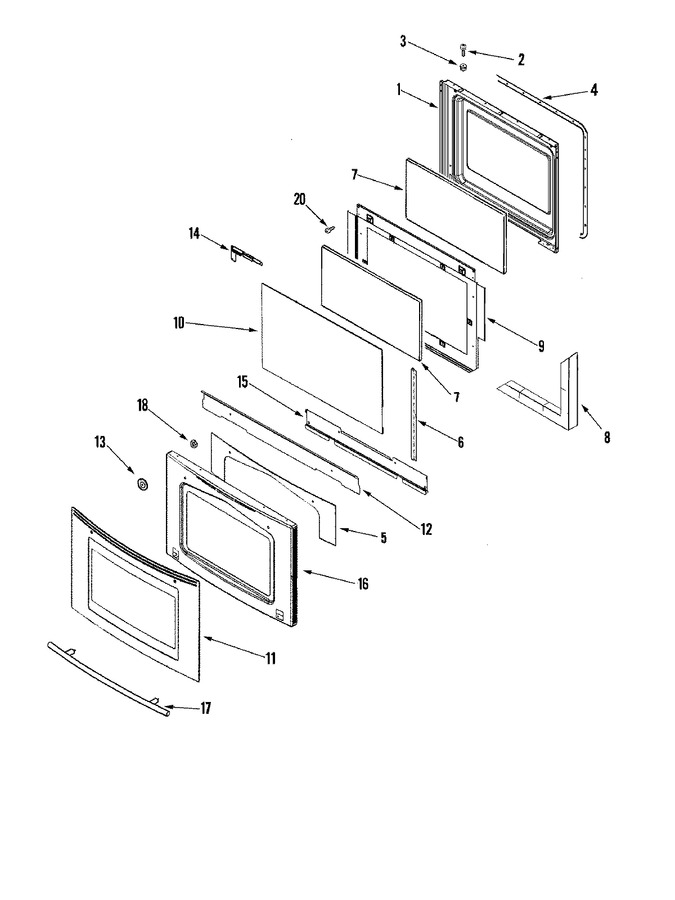

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74011456		Lining, Door	11	Appelez-nous	-
3	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	11		Immediately	$ 9.91
4	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	11		Immediately	$ 77.61
5	74011509		Insulation, Door	11			$ 31.64
6	74011458		Bracket, Inner Glass	11	Appelez-nous	-
7	74003645		Glass, Inner	11		Immediately	$ 162.53
8	74003647		Insulation, Oven Door	11	Appelez-nous	-
9	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	11			$ 244.22
10	74010231		Glass, Door (inner/coated)	11	Appelez-nous	-
11	74011512		Glass Asy, Door (bsq)	11	Appelez-nous	-
12	74011049		Shield, Door	11	Appelez-nous	-
13	74009194		Washer, Handle	11			$ 18.96
14	74011463		Retainer, Glass (rt)	11	Appelez-nous	-
14	74011797		Retainer, Glass (lt)	11	Appelez-nous	-
15	74011464		Retainer, Glass (lwr)	11	Appelez-nous	-
16	74011644		Frame, Door (bsq)	11	Appelez-nous	-
17	WP74008625		Handle, Door (ss)   (Replaces: 74008625)	11			$ 229.64
18	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	11		Immediately	$ 6.98
