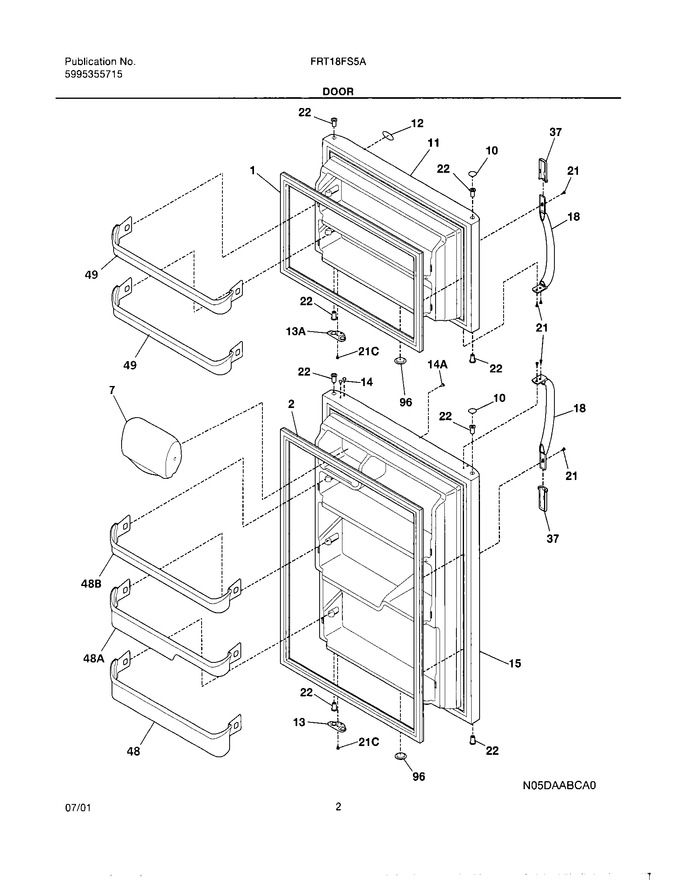

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
10	240381302		Plug-button,hinge Brg Hole ,bisque ,(2)				$ 19.06
11	240410202		Door-frzr,bisque ,complete Assy				$ 599.55
12	241808601		Label-nameplate,bisque   (Replaces: 240415203)				$ 12.69
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 12.13
14	218915704		Plug-button,bisque		Appelez-nous	-
15	240410302		Door-refr,bisque ,complete Assy				$ 423.36
18	218668004		Handle-door,bisque				$ 83.79
21	5304515677		Screw,truss Hd Quad ,10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 7.59
37	215870633		Trim-handle,2.47`` ,bisque ,w/satin Al Band				$ 56.81
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr   (Replaces: 240337801)			Immediately	$ 43.29
96	240345501		Plug-foam Hole,white		Appelez-nous	-
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
14A	240428302		Plug-button,screw Type ,bisque		Appelez-nous	-
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
48A	240337901		Bin-door,ref			Immediately	$ 52.13
48B	240338001		Bin-door,ref			Immediately	$ 34.96
F1	241872503		Gasket-frzr Door,white ,magnetic   (Replaces: 240370905)			Immediately	$ 137.66
F2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240370906)			Immediately	$ 190.22
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60

    View Diagram in Separate Window       Print Part List
