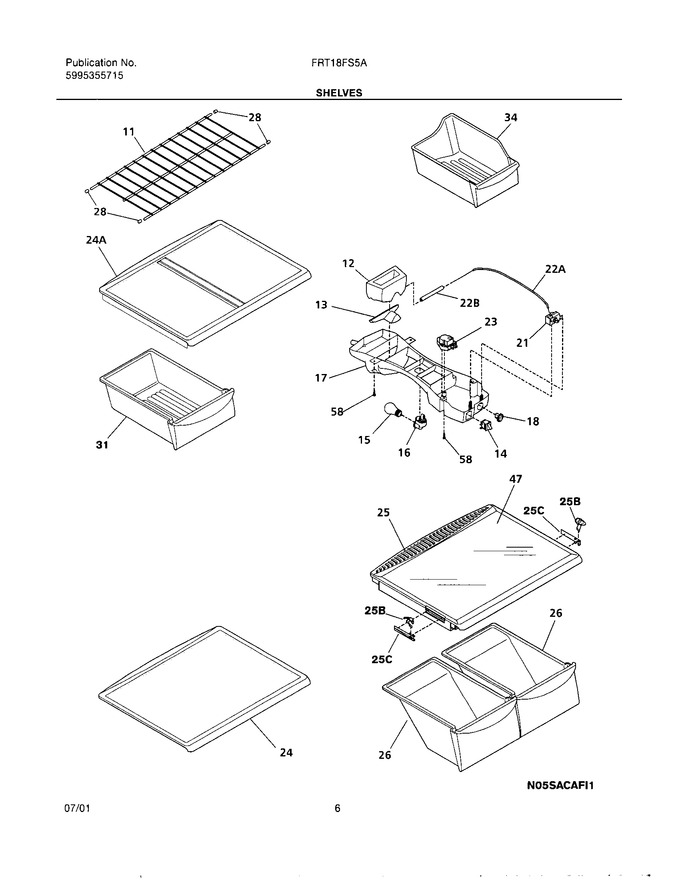

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240362501		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240352701		Control Box		Appelez-nous	-
18	240360801		Knob-control				$ 43.95
24	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358905)			Immediately	$ 129.17
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240354203)			Immediately	$ 135.77
34	240385201		Container-ice				$ 97.83
47	240350608		Insert-pan Cover,glass   (Replaces: 240350643)			Immediately	$ 45.50
58	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22B	218731105		Tube,pvc ,white ,@ Air Diffuser ,insulator		Appelez-nous	-
24A	240358926		Shelf-``spill-safe``,sliding   (Replaces: 240358906)			Immediately	$ 129.17
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 8.69
25C	5304492617		Damper-humidity Control   (Replaces: 240361301)			Immediately	$ 8.69
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F21	5304418228		Control-temperature				$ 188.06
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
NI	5303299664		Spacer-shelf				$ 24.10
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240392601		Seal-diffuser				$ 6.57
