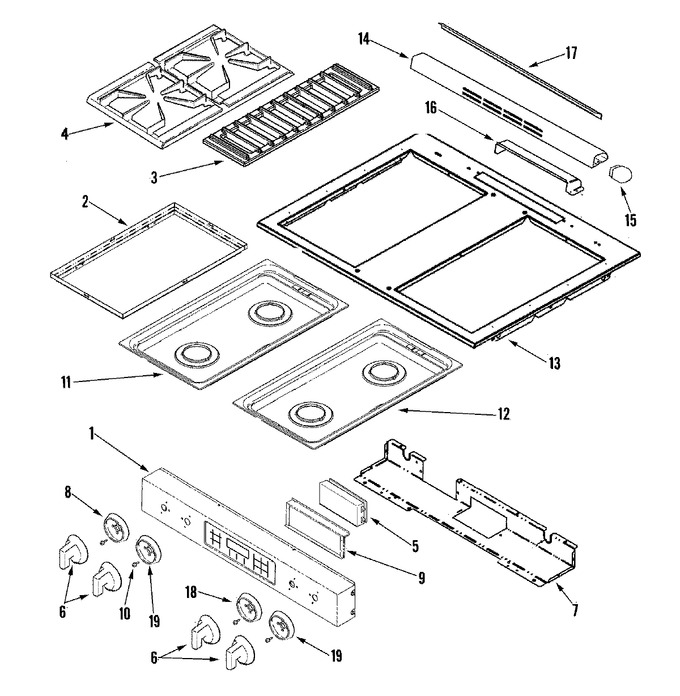

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP5760M339-60 | Control Panel/switch Asy (stl) (Replaces: 74011685) | 10 |
|
$ 537.47 | ||||
| 2 | 74011863 | Trim Frame, Drip Pan | 10 |
|
- | ||||
| 3 | 74011862 | Grate, Trivet (ctr) | 10 |
|
- | ||||
| 4 | 74011694 | Grate (blk) | 10 |
|
- | ||||
| 5 | 74011524 | Shield, Control | 10 |
|
- | ||||
| 5 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 5 | WP8507P229-60 | Control (Replaces: 74011798) | 10 |
|
Immediately | $ 352.38 | |||
| 6 | WPW10175695 | Knob (Replaces: 74011532) | 10 |
|
Immediately | $ 26.03 | |||
| 7 | 74011688 | Support, Control Panel | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 74011689 | Bezel, Knob (dual) | 10 |
|
$ 67.34 | ||||
| 9 | 74011525 | Bracket, Control | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 11 | W11233072 | Screw (Replaces: 74009538) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 74011693 | Pan, Drip (dual Burner) | 10 |
|
- | ||||
| 12 | 74009620 | Pan, Drip (med) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 74009538) | 10 |
|
Immediately | $ 12.62 | |||
| 13 | 74011692 | Top Asy | 10 |
|
- | ||||
| 14 | 74010946 | Cover, Vent (blk) | 10 |
|
- | ||||
| 14 | 74004365 | End Cap, Vent (rt-blk) | 10 |
|
- | ||||
| 15 | 74004365 | End Cap, Vent (rt-blk) | 10 |
|
- | ||||
| 15 | 74010925 | End Cap, Vent (lt-blk) | 10 |
|
$ 11.53 | ||||
| 16 | 3601F221-45 | Baffle, Vent Cover | 10 |
|
$ 28.30 | ||||
| 17 | 7201P061-60 | Gasket | 10 |
|
$ 4.83 | ||||
| 18 | 74011690 | Bezel, Knob (smr) | 10 |
|
$ 134.87 | ||||
| 19 | 74011691 | Bezel, Knob | 10 |
|
$ 47.51 |
