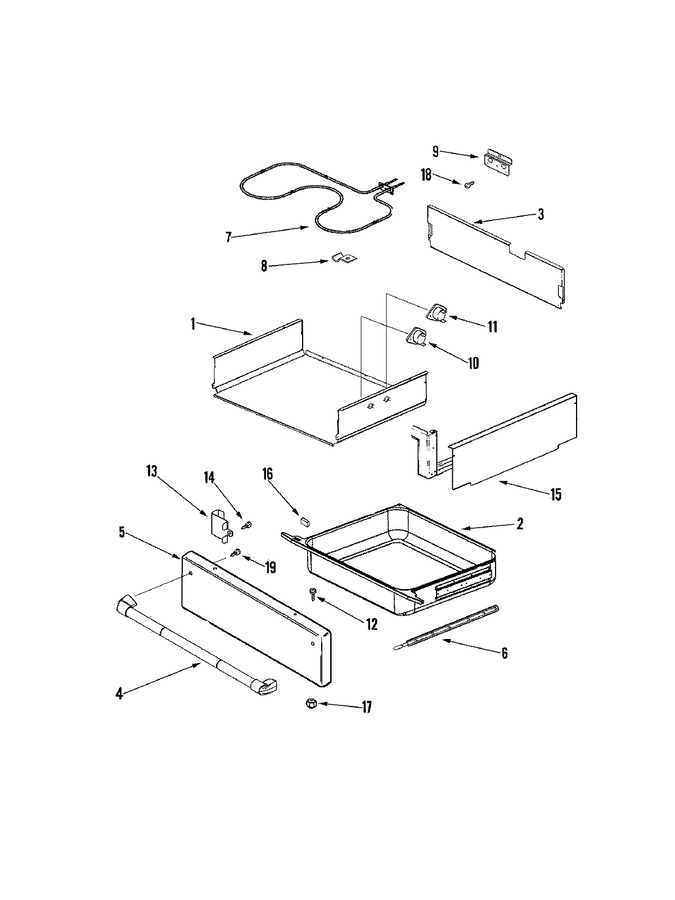

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74011814 | Body, Warming Drawer | 10 |
|
- | ||||
| 2 | 74011815 | Drawer, Warming | 10 |
|
- | ||||
| 3 | 74011816 | Back, Warming Drawer | 10 |
|
- | ||||
| 4 | WP7701P475-60 | Handle, Door (30`` Pro) (Replaces: 74008500) | 10 |
|
$ 251.94 | ||||
| 5 | 74011861 | Panel, Drawer Front (stl) | 10 |
|
- | ||||
| 6 | WP74006588 | Glide, Warming Drawer (Replaces: 74006588) | 10 |
|
$ 87.73 | ||||
| 6 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 7 | 74005789 | Element, Warmer | 10 |
|
- | ||||
| 8 | 74006592 | Clip, Warming Element | 10 |
|
- | ||||
| 9 | 74006576 | Support, Element (rear) | 10 |
|
- | ||||
| 10 | 7403P647-60 | Switch, Hi-limit (elec/drawer) (Replaces: 74006585) | 10 |
|
$ 32.68 | ||||
| 11 | 74006587 | Switch, Hi-limit (elec/drawer) | 10 |
|
$ 48.41 | ||||
| 12 | WP7101P072-60 | Screw, Panel (Replaces: 74004310) | 10 |
|
$ 6.77 | ||||
| 13 | 74010896 | Bracket, Drawer | 10 |
|
- | ||||
| 14 | W11233072 | Screw, 8 X 1/2 (Replaces: 74002979) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74011818 | Sheild, Side (warming Drwr) | 10 |
|
- | ||||
| 16 | WP74005546 | Spacer, Rubber (Replaces: 74005546) | 10 |
|
$ 9.48 | ||||
| 17 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 10 |
|
$ 4.00 | ||||
| 18 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 19 | 74011751 | Screw (10-24x 1/2) | 10 |
|
- |
