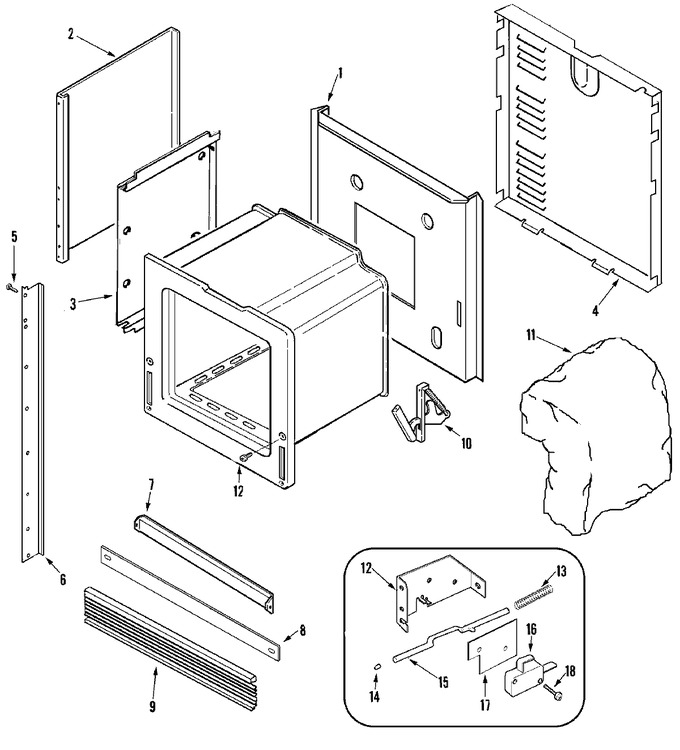

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009486 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F083-51 | Panel, Body | 10 |
|
- | ||||
| 3 | 74001436 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 4 | 4005F405-51 | Cover, Back | 10 |
|
- | ||||
| 5 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 6 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 6 | 74009490 | Extrusion, Side Trim (rt Blk) | 10 |
|
- | ||||
| 6 | 74009489 | Extrusion, Side Trim (lt Blk) | 10 |
|
- | ||||
| 7 | 74001219 | Baffle, Oven Front | 10 |
|
- | ||||
| 8 | 4005F354-70 | Strip, Bottom (blk) | 10 |
|
- | ||||
| 8 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 9 | 74004131 | Extrusion, Vent (lwr-blk) | 10 |
|
- | ||||
| 10 | WP74011141 | Hinge, Door (Replaces: 74003968) | 10 |
|
Immediately | $ 128.06 | |||
| 11 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 11 | 74009484 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 11 | 74009481 | Insulation, Rear | 10 |
|
- | ||||
| 12 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 13 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 14 | 74007586 | Cover, Plunger (door Light) | 10 |
|
- | ||||
| 15 | 74003562 | Rod, Door Light Switch | 10 |
|
- | ||||
| 16 | WP74008263 | Switch, Door Lock (Replaces: 74008263) | 10 |
|
$ 147.27 | ||||
| 17 | 74008264 | Insulator | 10 |
|
- | ||||
| 18 | 7101P330-60 | Screw, Switch | 10 |
|
- |
