Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74003642 Lining, Door 10 Appelez-nous -
1 74011456 Lining, Door 12 Appelez-nous -
2 Y12002301 Kit, Door Glass W/tape (wht) 10 Appelez-nous -
3 WP7103P114-60 Nut, Snap (round-wht)   (Replaces: 7103P039-60) 10 Special Order $ 9.89

4 WPW10162384 Gasket, Door   (Replaces: 7201P046-60) 10 In-Stock Immediately $ 77.61

5 WP74005546 Spacer, Rubber   (Replaces: 74005546) 10 Special Order $ 9.48

6 74003644 Frame, Glass 10 Appelez-nous -
6 74011458 Bracket, Inner Glass 12 Appelez-nous -
6 W11233072 Screw, 8 X 1/2   (Replaces: 74002979) 12 In-Stock Immediately $ 12.62

7 74003645 Glass, Inner 10 In-Stock Immediately $ 162.53

8 WP98008544 Screw (wht)   (Replaces: 74009540) 10 Special Order $ 11.89

8 WP3608F116-71 Trim, Door (wht-rt)   (Replaces: 74009694) 10 Special Order $ 112.01

8 WP3608F117-71 Trim, Door (wht-lt)   (Replaces: 74009695) 10 Special Order $ 111.43

9 74003647 Insulation, Oven Door 10 Appelez-nous -
10 WP90767 Screw   (Replaces: Y700502) 12 In-Stock Immediately $ 7.04

10 3601F373-51 Baffle, Oven Door   (Replaces: 74011457) 12 Special Order $ 244.22

10 74009502 Baffle, Oven Door 10 Appelez-nous -
11 74003649 Glass, Door 10 Appelez-nous -
12 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

12 74003650 Retainer, Glass 10 Appelez-nous -
12 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

13 WP98008544 Screw (wht)   (Replaces: 74009540) 10 Special Order $ 11.89

13 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

13 WP74003653 Trim, Door Top (wht)   (Replaces: 71003504) 10 Special Order $ 189.23

14 74001278 Screw (wht) 10 Special Order $ 5.83

14 7728P094-60 Insert, Door Trim (wht) 10 Special Order $ 82.40

15 74003656 Handle, Door (wht) 10 Appelez-nous -
16 WP179051 Screw   (Replaces: 74002059) 10 In-Stock Immediately $ 7.16

17 WP3807F708-71 Support, Glass (wht)   (Replaces: 74009687) 10 Special Order $ 144.83

18 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

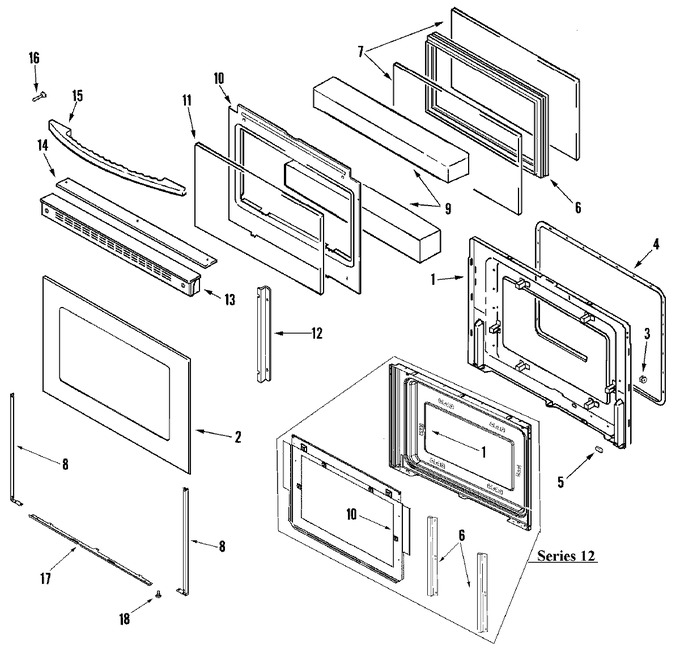

Diagram for JGW8130DDW
