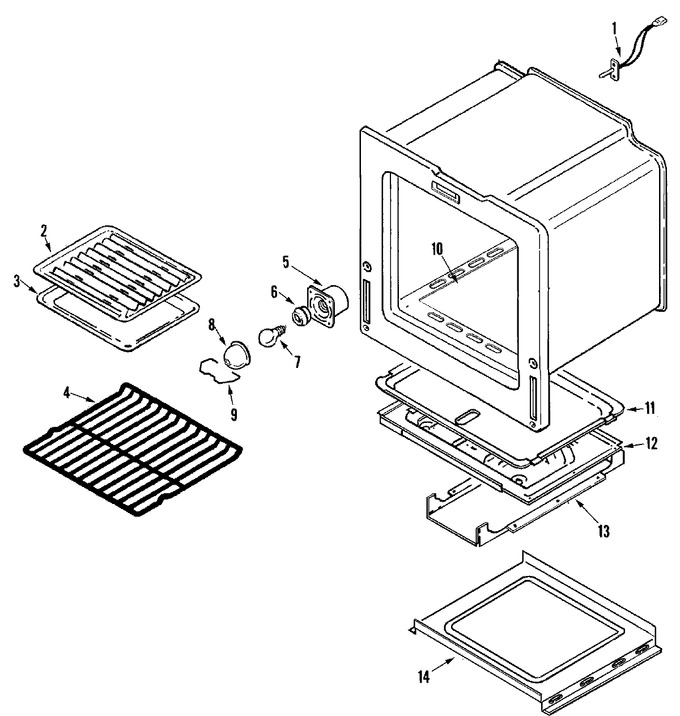

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
1	12001655		Sensor, Oven (short)   (Replaces: 74004944)	10		Immediately	$ 41.01
2	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
3	Y3401F02019		Pan, Broil	10	Appelez-nous	-
4	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
5	74003388		Housing, Bulb	10	Appelez-nous	-
6	74003387		Receptacle, Bulb	10			$ 5.84
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
8	74003389		Cover, Bulb	10	Appelez-nous	-
9	74003391		Retainer, Bulb Cover	10	Appelez-nous	-
10	74002393		Baffle, Oven Burner	10	Appelez-nous	-
10	WP7101P434-60		Screw   (Replaces: 71001394)	10			$ 6.26
10	74002377		Clip, Oven Bottom	10	Appelez-nous	-
10	74011347		Bottom, Oven Assy.	11	Appelez-nous	-
10	74002376		Bottom, Oven	10	Appelez-nous	-
11	74009477		Cover, Burner Orifice	10	Appelez-nous	-
11	74001651		Pan, Bake Burner	10	Appelez-nous	-
12	74009479		Bracket,insul.retainer(bottom)	10	Appelez-nous	-
12	74009480		Retainer, Bottom Insulation	10	Appelez-nous	-
13	3807F429-51		Support, Cavity	10	Appelez-nous	-
14	74001742		Bottom, Main	10	Appelez-nous	-
