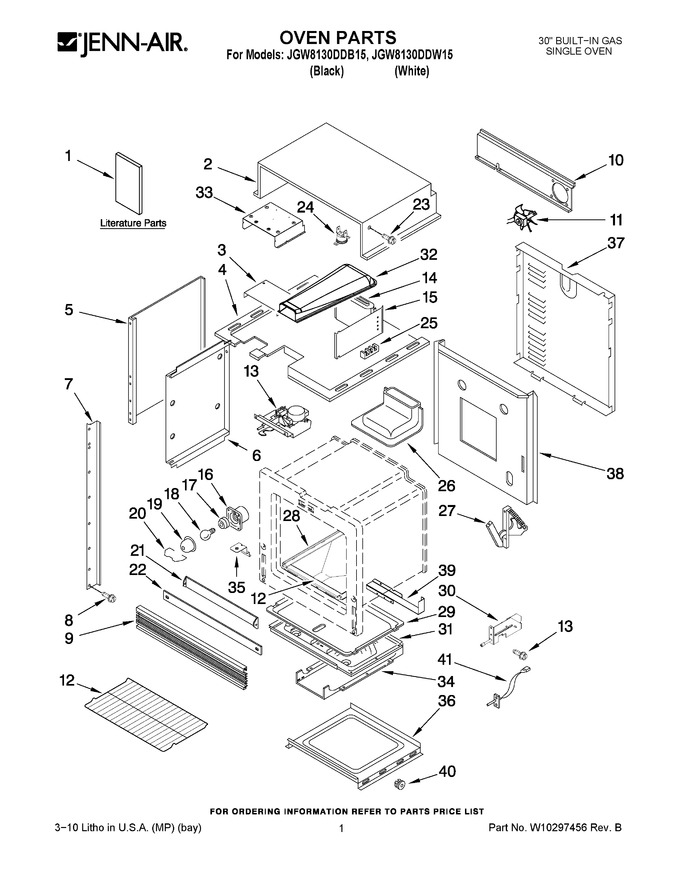

01 - Oven Parts
02 - Control Panel Parts
03 - Internal Oven Parts
04 - Oven Door Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10169649 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Brochure, Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8119P068-60 | Wiring Diagram (english) |
|
- | |||||
| 1 | 8119P069-60 | Wiring Diagram (french) |
|
- | |||||
| 2 | 4005F734-51 | Cover, Top |
|
- | |||||
| 3 | 3804F267-51 | Retainer, Lock |
|
- | |||||
| 4 | 3804F268-51 | Retainer, Top Insulation |
|
- | |||||
| 5 | 2618F083-51 | Panel, Body (2) |
|
- | |||||
| 6 | 3804F128-51 | Retainer, Side (2) |
|
- | |||||
| 7 | 7750P261-60 | Extrusion,trim (right (black) |
|
- | |||||
| 7 | 7750P264-60 | Extrusion,trim (left (chrome)) |
|
- | |||||
| 7 | 7750P263-60 | Extrusion,trim (right (chrome)) |
|
- | |||||
| 7 | 7750P262-60 | Extrusion,trim (left (black)) |
|
- | |||||
| 8 | WPY706189 | Screw, Extrusion (black) (Replaces: 7101P653-60) |
|
Immediately | $ 6.47 | ||||
| 8 | W11233072 | Screw, Extrusion (zinc) (Replaces: 7101P634-60) |
|
Immediately | $ 12.62 | ||||
| 9 | 7756P160-60 | Extrusion, Lower Vent Grill (chrome) |
|
- | |||||
| 9 | 7756P159-60 | Extrusion, Lower Vent Grill (black) |
|
- | |||||
| 10 | 4001F083-51 | Housing, Fan |
|
- | |||||
| 11 | 7427P031-60 | Fan Assembly |
|
$ 297.03 | |||||
| 12 | 7801P173-60 | Rack, Oven |
|
$ 55.72 | |||||
| 13 | WPW10186996 | Latch, Door Assy (Replaces: W10186996) |
|
Immediately | $ 330.95 | ||||
| 14 | 4006D128-45 | Riser, Duct Assy. |
|
- | |||||
| 15 | 3604F379-51 | Shield, Air |
|
- | |||||
| 16 | 4001F109-45 | Housing, Bulb |
|
- | |||||
| 17 | 7408P044-60 | Receptacle, Bulb |
|
- | |||||
| 18 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 19 | 7724P102-60 | Cover, Bulb |
|
- | |||||
| 20 | 7804P001-60 | Retainer, Cover |
|
- | |||||
| 21 | 3601F251-45 | Baffle, Oven |
|
- | |||||
| 22 | 4005F354-70 | Strip, Bottom (black) |
|
- | |||||
| 22 | 4005F354-71 | Strip, Bottom (white) |
|
- | |||||
| 23 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 24 | 7403P898-60 | Switch, Limit |
|
- | |||||
| 25 | 7401P037-60 | Block, Terminal |
|
- | |||||
| 26 | 4006W117-45 | Box, Flue Transition |
|
- | |||||
| 27 | WP74011141 | Hinge, Door (Replaces: 7106P133-60) |
|
Immediately | $ 128.06 | ||||
| 28 | WP2205F054-19 | Bottom, Oven (Replaces: 2205F054-19) |
|
$ 663.49 | |||||
| 29 | 3401F086-45 | Pan, Bake Burner |
|
- | |||||
| 30 | WP7450P108-60 | Switch, Oven Light (Replaces: 7450P109-60) |
|
Immediately | $ 138.24 | ||||
| 31 | 3804F245-51 | Retainer, Bottom |
|
$ 97.02 | |||||
| 32 | 4006D101-45 | Duct, Flue |
|
- | |||||
| 33 | 3604F166-45 | Shield, Heat-top Cover |
|
- | |||||
| 34 | 3807F429-51 | Support, Oven |
|
- | |||||
| 35 | 3807F727-45 | Support,oven Bottom (2) |
|
$ 18.96 | |||||
| 36 | 4011F291-51 | Bottom, Main |
|
$ 29.90 | |||||
| 37 | 4005F405-51 | Cover, Back |
|
- | |||||
| 38 | 4002F320-51 | Back, Main |
|
- | |||||
| 39 | 3801F768-51 | Bracket-insulation Retainer |
|
- | |||||
| 40 | 7103P125-60 | Nut, Snap (2) |
|
- | |||||
| 41 | 12001655 | Sensor, Oven (Replaces: 7430P041-60) |
|
Immediately | $ 41.01 | ||||
| NI | 7002P425-60 | Insulation Oven Back |
|
- | |||||
| NI | 7002P460-60 | Insulation Oven Back/bottom |
|
- | |||||
| NI | 7002P426-60 | Insulation, Oven Wrap |
|
- |
