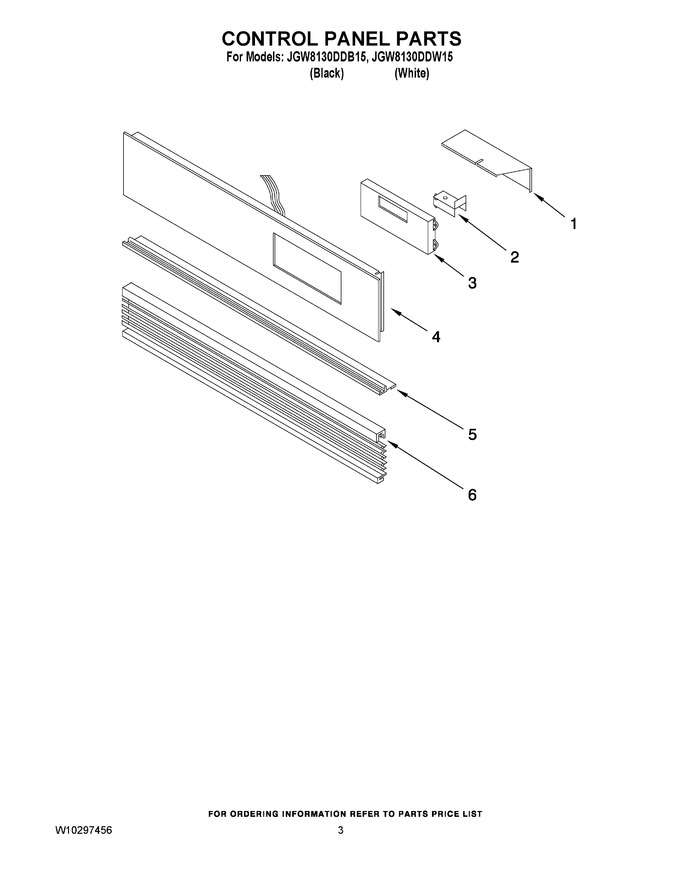

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3604F380-51 | Shield, Vent |
|
- | |||||
| 2 | 8004P088-60 | Bracket, Control |
|
- | |||||
| 3 | 8507P284-60 | Control (gas) |
|
- | |||||
| 4 | WP5766M099-60 | Panel, Control (includes Main Wiring Harness) (black) (Replaces: 5766M099-60) |
|
$ 433.31 | |||||
| 4 | 5766M100-60 | Panel, Control (includes Main Wiring Harness) (white) |
|
$ 251.32 | |||||
| 5 | 7756P197-60 | Trim,control Panel (black) |
|
- | |||||
| 5 | 7756P198-60 | Trim,control Panel (chrome) |
|
- | |||||
| 6 | 7756P199-60 | Extrusion, Top Vent Grill (black) |
|
- | |||||
| 6 | 7756P200-60 | Extrusion, Top Vent Grill (chrome) |
|
- |
