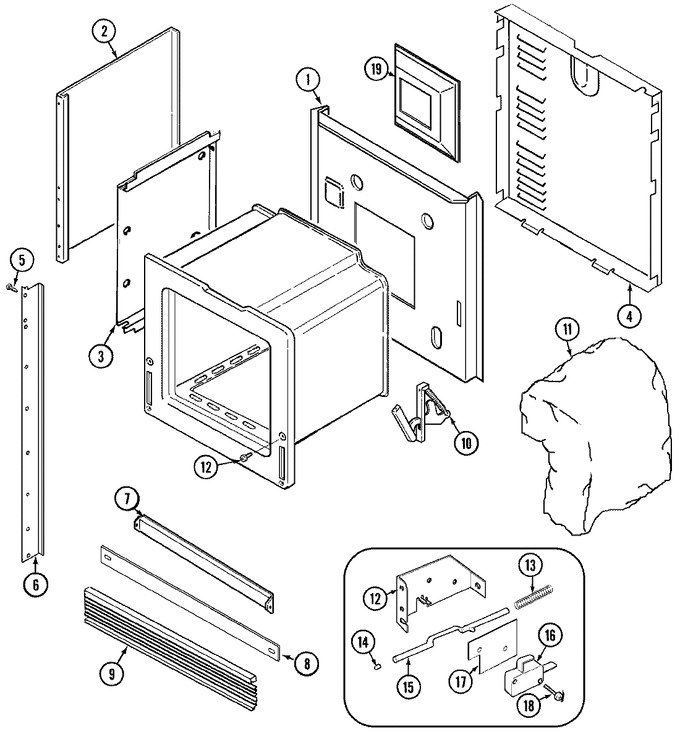

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
06 - Oven/base
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004108 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F083-51 | Panel, Body | 10 |
|
- | ||||
| 3 | 74001436 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 4 | 4005F405-51 | Cover, Back | 10 |
|
- | ||||
| 4 | 74002240 | Insulator, Oven Light | 10 |
|
- | ||||
| 5 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 6 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 6 | 74004133 | Extrusion, Side (rt-blk) | 10 |
|
- | ||||
| 6 | 74004134 | Extrusion, Sdie (lt-blk) | 10 |
|
- | ||||
| 7 | 74001219 | Baffle, Oven Front | 10 |
|
- | ||||
| 8 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 8 | 4005F354-70 | Strip, Bottom (blk) | 10 |
|
- | ||||
| 9 | 74004131 | Extrusion, Vent (lwr-blk) | 10 |
|
- | ||||
| 10 | WP74011141 | Hinge, Door (Replaces: 74003968) | 10 |
|
Immediately | $ 128.06 | |||
| 11 | 74003036 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 11 | 74003382 | Insulation, Back/bottom | 10 |
|
- | ||||
| 12 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 13 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 14 | 74001631 | Bumper, Rod | 10 |
|
$ 5.22 | ||||
| 15 | 74003562 | Rod, Door Light Switch | 10 |
|
- | ||||
| 16 | 74001627 | Insulator, Door Switch | 10 |
|
- | ||||
| 16 | 74001802 | Switch | 10 |
|
- | ||||
| 17 | 74001872 | Insulator, Switch | 10 |
|
- | ||||
| 18 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 19 | 74001801 | Retainer, Insul. (back) | 10 |
|
- |
