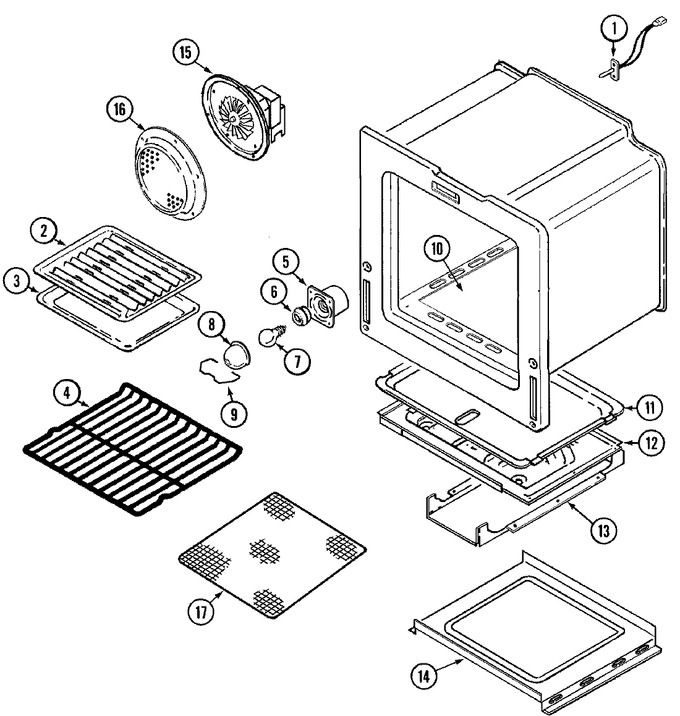

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
05 - Internal Controls
06 - Oven/base
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12001655 | Probe, Oven Sensor (short) (Replaces: 74003413) | 10 |
|
Immediately | $ 41.01 | |||
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 3 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 10 |
|
Immediately | $ 65.15 | |||
| 5 | 74003388 | Housing, Bulb | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74003387 | Receptacle, Bulb | 10 |
|
$ 5.84 | ||||
| 7 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 8 | 74003389 | Cover, Bulb | 10 |
|
- | ||||
| 9 | 74003391 | Retainer, Bulb Cover | 10 |
|
- | ||||
| 10 | 5504A003-19 | Bottom, Oven | 10 |
|
- | ||||
| 11 | 74001651 | Pan, Bake Burner | 10 |
|
- | ||||
| 12 | 74004296 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 13 | 3807F429-51 | Support, Cavity | 10 |
|
- | ||||
| 14 | 74001742 | Bottom, Main | 10 |
|
- | ||||
| 15 | 74003815 | Fan Assy. (convect) | 10 |
|
- | ||||
| 16 | 74002943 | Cover, Convect Fan | 10 |
|
- | ||||
| 17 | 74003595 | Rack, Dehydration | 10 |
|
- |
