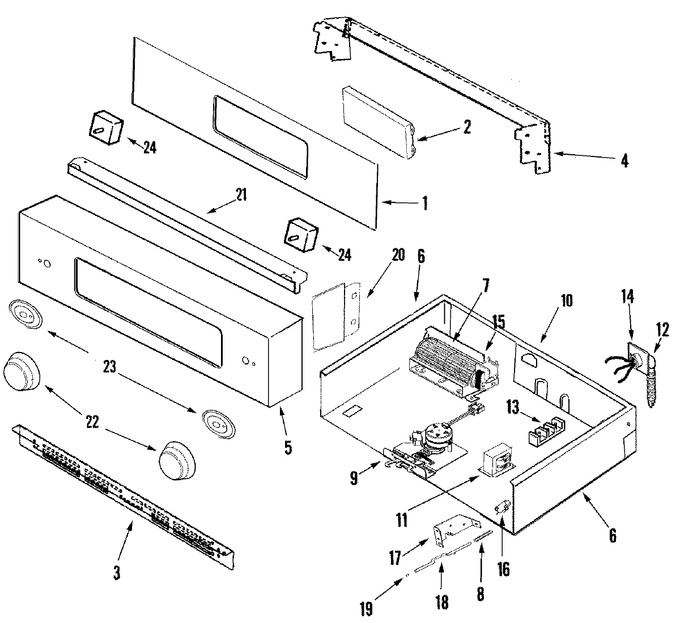

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008480 | Glass Touch Assy. (stl/30``sgl) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 74008489 | Control, Single (pro) | 10 |
|
- | ||||
| 2 | 74009719 | Control, Single-prostyle | 14 |
|
$ 458.93 | ||||
| 3 | 74008491 | Trim, Control (stl) | 10 |
|
- | ||||
| 4 | 74008362 | Support, Top Control | 10 |
|
- | ||||
| 5 | 74008485 | Panel, Control (pro/30`` Sgl) | 10 |
|
- | ||||
| 6 | 74008360 | Side Panel, Control (rt) | 10 |
|
- | ||||
| 6 | 74008359 | Side Panel, Control (lt) | 10 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 7 | WP74008383 | Fan, Tangential (Replaces: 74008383) | 10 |
|
Immediately | $ 181.53 | |||
| 8 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 9 | WPW10186996 | Latch, Door Assy. (w/switch) (Replaces: 74008267) | 10 |
|
Immediately | $ 330.95 | |||
| 10 | W10187048 | Panel, Control Box (rear) (Replaces: 74008382) | 10 |
|
- | ||||
| 11 | W10124350 | Not Required Part Or See Note No Longer Required | 19 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 74005416 | Transformer (stepdown) | 10 |
|
$ 44.05 | ||||
| 12 | 74004726 | Wire Cable Assy. | 10 |
|
- | ||||
| 12 | 74004222 | Grommet, Anti-short | 10 |
|
$ 7.82 | ||||
| 13 | 7417P017-60 | Connector, Cable | 10 |
|
$ 9.81 | ||||
| 13 | WPW10281322 | Kit, Hardware Adapter (Replaces: 74008298) | 10 |
|
$ 7.61 | ||||
| 13 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 10 |
|
Immediately | $ 6.47 | |||
| 13 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 14 | 74004712 | Bracket, Cable | 10 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 15 | 74008343 | Bracket, Cooling Fan | 10 |
|
- | ||||
| 16 | WP74008263 | Switch, Door Lock (Replaces: 74008263) | 10 |
|
$ 147.27 | ||||
| 16 | 74008264 | Insulator | 10 |
|
- | ||||
| 16 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 17 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 18 | 74003562 | Rod, Door Light Switch | 10 |
|
- | ||||
| 19 | 74001631 | Bumper, Rod | 10 |
|
$ 5.22 | ||||
| 20 | 74008482 | Cover, Control Panel (pro 30``) | 10 |
|
- | ||||
| 21 | 74008487 | Retainer, Control Glass (pro) | 10 |
|
- | ||||
| 22 | 74008493 | Knob, Oven Control (pro) | 10 |
|
$ 31.64 | ||||
| 23 | 74008494 | Bezel, Knob (pro) | 10 |
|
- | ||||
| 23 | Y704977 | Nut, 5/8`` Hex | 10 |
|
- | ||||
| 24 | 74008488 | Encoder, Rotary Bit | 10 |
|
$ 63.25 |
