Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74008495 Panel, Door W/logo (pro) 10 Appelez-nous -
1 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

2 74011462 Liner, Oven Door 20 Appelez-nous -
2 74008413 Liner, Oven Door 10 Appelez-nous -
3 74003644 Frame, Glass 10 Appelez-nous -
3 W11233072 Screw, 8 X 1/2   (Replaces: 74002979) 20 In-Stock Immediately $ 12.62

3 74011458 Bracket, Inner Glass 20 Appelez-nous -
4 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

4 74008414 Retainer, Insulation 10 Appelez-nous -
4 74011461 Retainer, Insulation 20 Appelez-nous -
5 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

5 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 10 Special Order $ 4.29

5 WP74010283 Hinge, Door   (Replaces: 74010283) 17 In-Stock Immediately $ 97.29

5 74008415 Hinge, Door 10 Appelez-nous -
6 WPW10162386 Seal, Door   (Replaces: 74008416) 10 In-Stock Immediately $ 126.18

7 74005633 Glass, Inner Door 10 Appelez-nous -
8 WP7701P475-60 Handle, Door (30`` Pro)   (Replaces: 74008500) 10 Special Order $ 251.94

8 71001723 Screw (10-24) 10 Appelez-nous -
9 74003647 Insulation, Oven Door 10 Appelez-nous -
10 74003645 Glass, Inner 10 In-Stock Immediately $ 162.53

11 74008496 Panel, Door Side (lt) 10 Appelez-nous -
11 74008497 Panel, Door Side (rt) 10 Appelez-nous -
12 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

12 74008498 Retainer, Door Glass (30`` Pro) 10 Appelez-nous -
13 Y74008423 Glass, Inner (screened) 10 Special Order $ 91.68

14 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

14 74003650 Retainer, Glass 10 Appelez-nous -
15 74008392 Trim, Bottom Door Vent (blk) 10 Appelez-nous -
15 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

16 74006889 Nameplate (stl) 10 Special Order $ 43.24

17 3601F373-51 Baffle, Oven Door   (Replaces: 74011457) 20 Special Order $ 244.22

17 74003648 Baffle, Door 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

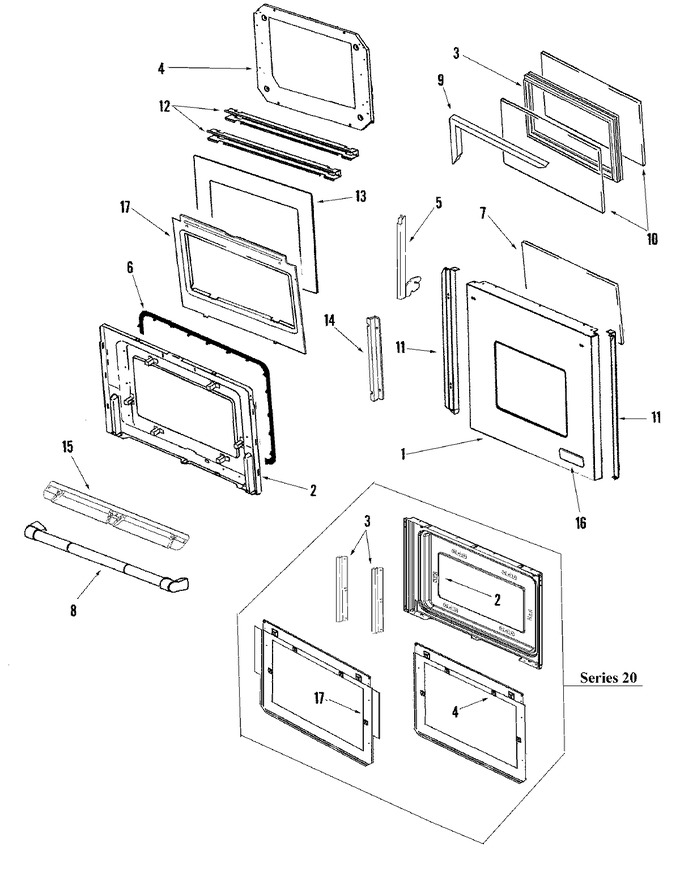

Diagram for JJW9530DDP
