Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2402W314-19 Liner-door Appelez-nous -
2 WP74010283 Hinge, Door   (Replaces: 7106P117-60) In-Stock Immediately $ 97.29

3 3608F102-70 Trim, Btm Dr Vent Appelez-nous -
4 7002P246-60 Insulation, Door Special Order $ 58.49

5 3801F886-51 Bracket, Inner Glass Special Order $ 38.25

6 7760P115-60 Panel, Door Appelez-nous -
7 3804F144-45 Retainer, Dr Glass Appelez-nous -
8 3804F244-51 Retainer, Door Appelez-nous -
9 WPW10162386 Gasket, Door   (Replaces: W10162386) In-Stock Immediately $ 126.18

10 7902P656-60 Glass, Door (screened) Appelez-nous -
11 WP7701P475-60 Handle, Door   (Replaces: 7701P475-60) Special Order $ 251.94

12 3804F303-51 Retainer, Insul. Special Order $ 61.18

13 3601F373-51 Baffle, Door Special Order $ 244.22

14 74003645 Glass, Inner   (Replaces: 7902P436-60) In-Stock Immediately $ 162.53

15 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

16 7101P652-60 Screw Appelez-nous -
17 7902P585-60 Glass, Inner Appelez-nous -
18 7760P113-60 Panel, Side Door (left) Appelez-nous -
18 7760P112-60 Panel, Side Door (right) Appelez-nous -
19 7719P087-60 Nameplate Appelez-nous -

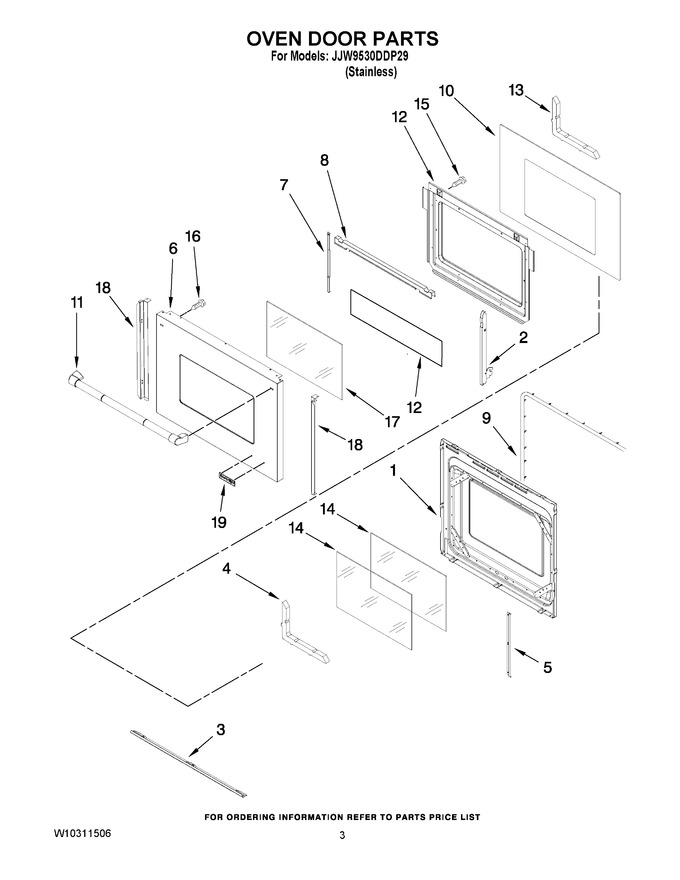

    View Diagram in Separate Window     Print Icon   Print Part List
