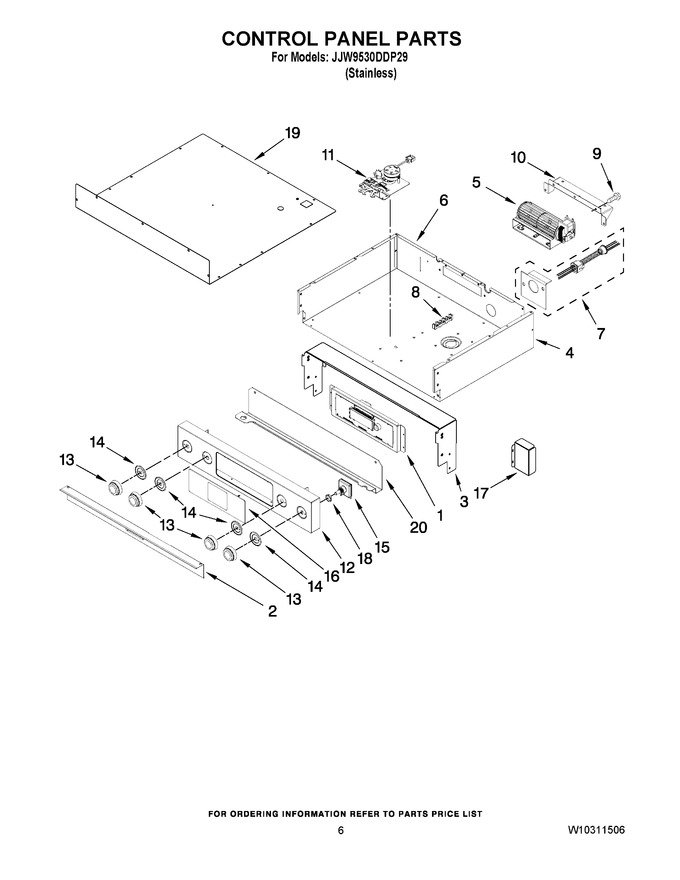

04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8507P338-60 | Control, Single |
|
- | |||||
| 2 | 3608F109-70 | Trim, Control Pnl |
|
- | |||||
| 3 | 3807F717-51 | Support, Top Cntrl |
|
$ 31.22 | |||||
| 4 | 2624F077-51 | Panel, Cntrl Side (right) |
|
- | |||||
| 4 | 2624F076-51 | Panel, Cntrl Side (left) |
|
- | |||||
| 5 | WP74008383 | Fan, Tangential (Replaces: 7427P062-60) |
|
Immediately | $ 181.53 | ||||
| 6 | W10187048 | Panel, Control Box Rear (Replaces: 2624F100-51) |
|
- | |||||
| 7 | 5700P829-60 | Assembly, Cable |
|
$ 342.20 | |||||
| 8 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 9 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 10 | 3801F829-51 | Brkt., Cooling Fan |
|
$ 76.94 | |||||
| 11 | WPW10186996 | Assy., Latch Door (Replaces: W10186996) |
|
Immediately | $ 330.95 | ||||
| 12 | 7720P544-60 | Panel, Control Pro |
|
- | |||||
| 13 | 7711P506-60 | Knob |
|
- | |||||
| 14 | 7740P149-60 | Bezel, Knob |
|
- | |||||
| 15 | 7422P015-60 | Encoder, Rotary |
|
- | |||||
| 16 | 7912P375-60 | Glass, Control |
|
- | |||||
| 17 | 4005F698-51 | Bracket, Filler |
|
- | |||||
| 18 | 7103P161-60 | Nut |
|
- | |||||
| 19 | 2624F098-44 | Panel, Control Box Top |
|
- | |||||
| 20 | 3804F246-51 | Retainer, Control |
|
- |
