SELECT A DIAGRAM

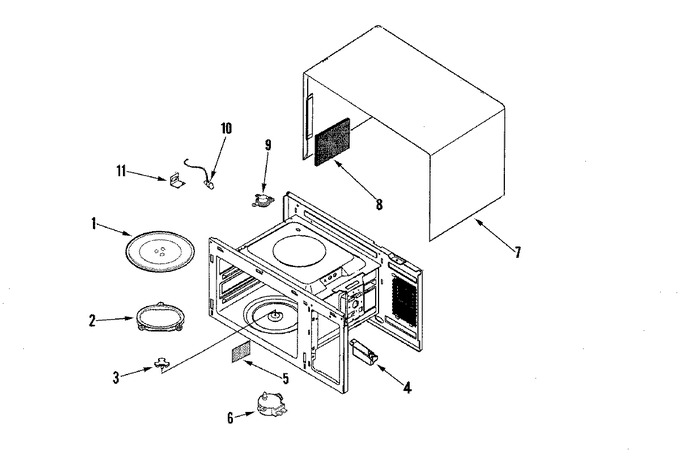

01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE74-20002C | Tray-cooking | 10 |
|
$ 66.71 | ||||
| 2 | DE97-00401B | Assy-guide Roller;mr87/mr89,pi | 10 |
|
- | ||||
| 3 | DE67-00214A | Coupler | 10 |
|
- | ||||
| 4 | DE66-90113A | Lever-door | 10 |
|
$ 17.58 | ||||
| 5 | DE71-60449A | Cover-mgt | 10 |
|
- | ||||
| 6 | 555555 | Motor-drive (Replaces: DE31-10154A) | 10 |
|
$ 151.94 | ||||
| 7 | DE64-01341B | Panel-outer (wht) | 10 |
|
- | ||||
| 8 | DE63-90035G | Cushion-rubber | 10 |
|
- | ||||
| 9 | DE47-20173A | Thermostat | 10 |
|
$ 21.43 | ||||
| 10 | DE97-00585B | Asy Sensor-humidity | 10 |
|
- | ||||
| 11 | DE61-00097A | Bracket-sensor | 10 |
|
- |
