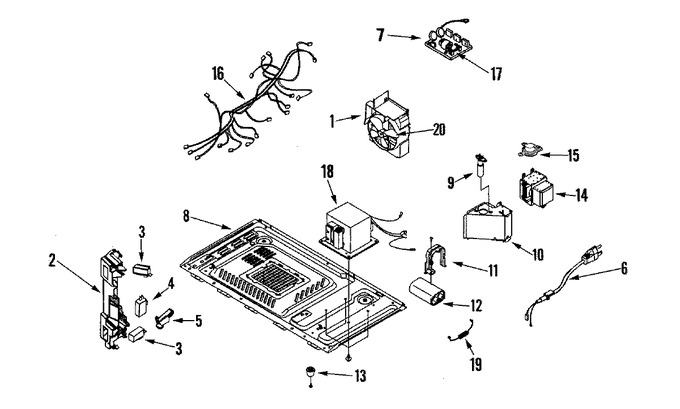

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body/cavity
02 - Control Panel/door Assembly
03 - Internal Controls/latch Asy./base
04 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE71-00165A | Cover, Motor | 10 |
|
- | ||||
| 2 | DE72-00138A | Body-latch | 10 |
|
- | ||||
| 3 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 4 | 3405-001033 | Switch-micro | 10 |
|
Immediately | $ 17.58 | |||
| 5 | DE66-00088B | Lever, Switch | 10 |
|
- | ||||
| 6 | DE39-00040G | Asy Power Cord | 10 |
|
- | ||||
| 7 | DE96-00399B | Assy Noise Filter | 10 |
|
$ 70.23 | ||||
| 8 | DE80-10032K | Base-plate | 10 |
|
$ 95.32 | ||||
| 9 | DE07-00005A | Lamp-incandescent | 10 |
|
- | ||||
| 10 | DE71-00012A | Cover-air | 10 |
|
- | ||||
| 11 | DE61-50170A | Bracket-hvc | 10 |
|
- | ||||
| 12 | 8206562 | Capacitor (Replaces: 2501-001016) | 10 |
|
Immediately | $ 108.83 | |||
| 13 | DE61-40066A | Foot | 10 |
|
$ 17.58 | ||||
| 14 | WPW10126794 | Assy-mgt (Replaces: W10126794) | 10 |
|
$ 282.22 | ||||
| 15 | DE47-20030A | Thermostat | 10 |
|
$ 17.58 | ||||
| 16 | DE96-00392A | Harness, Wire | 10 |
|
- | ||||
| 17 | ABC20 | Cartridge, Fuse (Replaces: 3601-001198) | 10 |
|
Immediately | $ 10.31 | |||
| 18 | DE26-00061B | Trans-h.v | 10 |
|
$ 181.92 | ||||
| 19 | DE91-70063D | Assy-hvd | 10 |
|
Immediately | $ 15.89 | |||
| 20 | DE31-90051A | Blade-fan | 10 |
|
$ 6.95 |
