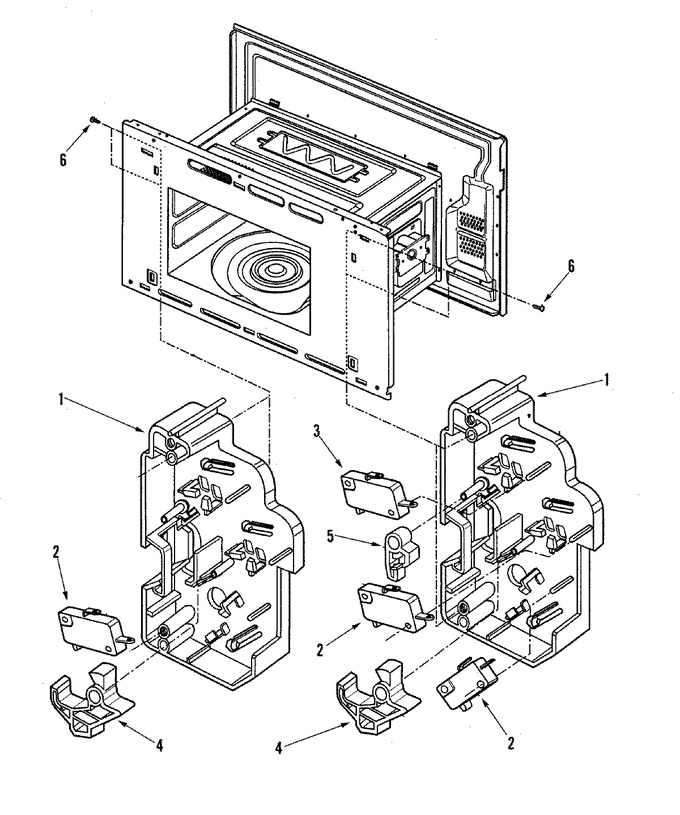

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53001246 | Support, Latch/switches | 10 |
|
$ 26.96 | ||||
| 2 | WP56001036 | Switch, Primary (Replaces: 56001036) | 10 |
|
$ 74.84 | ||||
| 3 | 4392027 | Switch, Micro (Replaces: R0813140) | 10 |
|
$ 138.41 | ||||
| 4 | 53001247 | Lever | 10 |
|
- | ||||
| 5 | 53001249 | Lever | 10 |
|
- | ||||
| 6 | R0654178 | Screw, Special D | 10 |
|
- |
