01 - Body Base & Cavity
02 - Control Panel
03 - Door Assembly
04 - Interlock Switches
05 - Internal Controls
06 - Supplemental Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

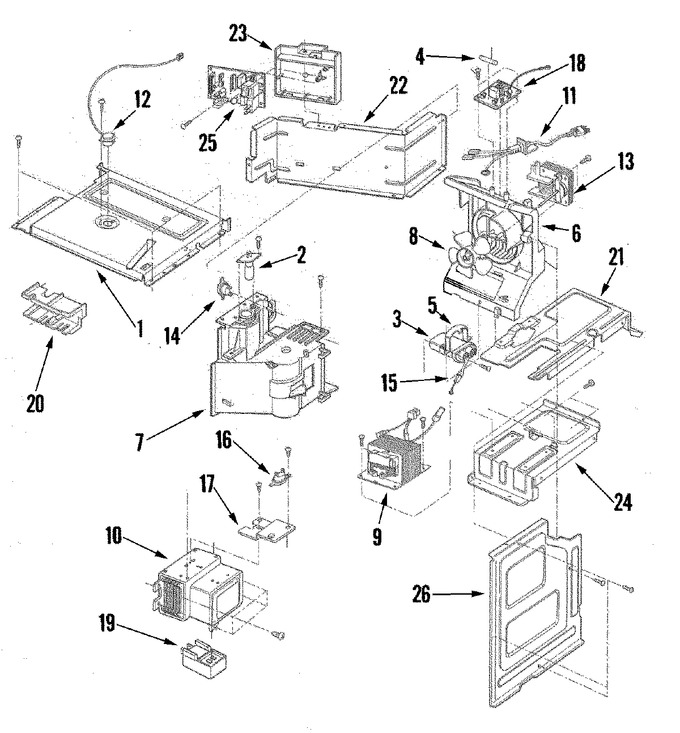

| 1 | R0130675 | Tunnel, Air | 10 |
|
- | ||||
| 2 | WP8183592 | Lamp Assembly (Replaces: 53001266) | 10 |
|
$ 41.09 | ||||
| 3 | WP59001168 | Capacitor, H.v. (Replaces: 53001110) | 10 |
|
Immediately | $ 208.35 | |||
| 4 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) | 10 |
|
Immediately | $ 10.31 | |||
| 5 | 53001248 | Bracket, Capacitor | 10 |
|
- | ||||
| 6 | 53001250 | Guide, Suction | 10 |
|
- | ||||
| 7 | 53001251 | Duct | 10 |
|
- | ||||
| 8 | 53001252 | Blade, Fan(round Shaft) | 10 |
|
- | ||||
| 9 | 53001253 | Transformer | 10 |
|
- | ||||
| 10 | W10859575 | Magnetron (Replaces: R9900082) | 10 |
|
$ 361.62 | ||||
| 11 | 53001254 | Cord, Power | 10 |
|
- | ||||
| 12 | 53001255 | Sensor Assembly | 10 |
|
- | ||||
| 13 | 53001256 | Motor, Fan (round Shaft) | 10 |
|
- | ||||
| 14 | R0131025 | Thermostat, Bimetal | 10 |
|
- | ||||
| 15 | WPR9800486 | Diode Cable Assy (Replaces: R0131275) | 10 |
|
$ 26.79 | ||||
| 16 | R9900321 | Thermostat, Bimetal | 10 |
|
- | ||||
| 17 | 53001258 | Bracket, Thermostat | 10 |
|
- | ||||
| 18 | 53001259 | Filter Assembly | 10 |
|
- | ||||
| 19 | R9800442 | Assy, Choke Filter | 10 |
|
- | ||||
| 20 | 53001260 | Guide, Air | 10 |
|
- | ||||
| 21 | 53001272 | Barrier | 10 |
|
- | ||||
| 22 | 53001274 | Barrier | 10 |
|
- | ||||
| 23 | 53001275 | Base, Mounting (pcb) | 10 |
|
- | ||||
| 24 | 53001277 | Bottom, Internal Controls | 10 |
|
- | ||||
| 25 | 53001291 | Board, Power Control | 10 |
|
$ 187.20 | ||||
| 26 | 53001276 | Sheild, Plate | 10 |
|
- |
