SELECT A DIAGRAM

01 - Control Panel Parts

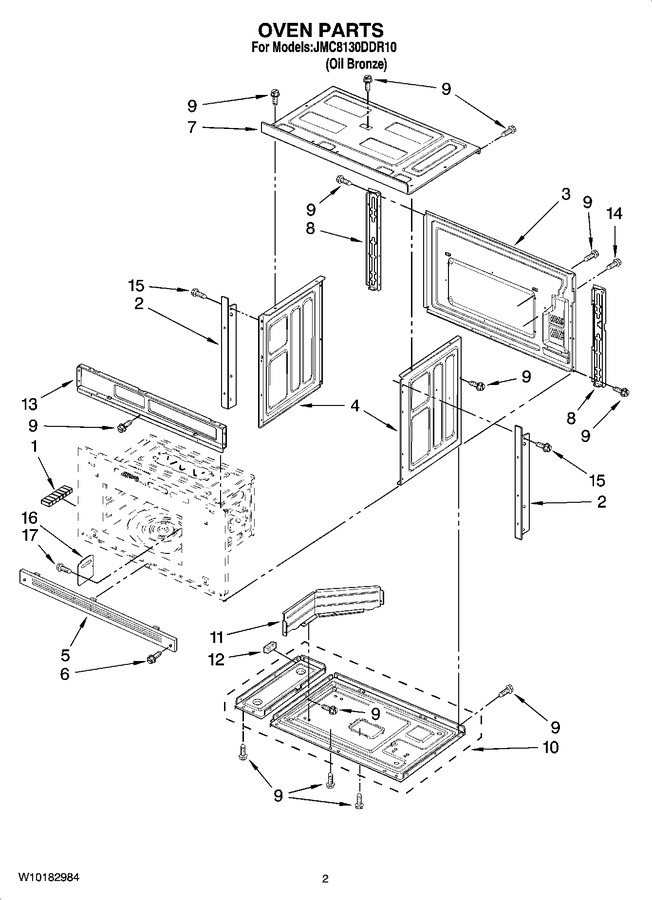

02 - Oven Parts


03 - Microwave Door Parts


04 - Latch Board Parts


05 - Oven Interior Parts


06 - Turntable Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R9800398		Cushion		Appelez-nous	-
2	53001263		Trim, Side (rh)		Appelez-nous	-
2	53001262		Trim, Side (lh)		Appelez-nous	-
3	53001261		Cover, Back		Appelez-nous	-
4	53001269		Side, Chassis (left Side)		Appelez-nous	-
4	53001268		Side, Chassis (right Side)		Appelez-nous	-
5	53001264		Trim, Bottom		Appelez-nous	-
6	R9800360		Screw		Appelez-nous	-
7	53001267		Top, Chassis		Appelez-nous	-
8	53001270		Bracket, Back (lh)		Appelez-nous	-
8	53001271		Bracket, Back (rh)		Appelez-nous	-
9	R0131246		Screw		Appelez-nous	-
10	53001278		Base, Plate		Appelez-nous	-
11	53001273		Barrier		Appelez-nous	-
12	W10182900		Cushion		Appelez-nous	-
13	53001289		Bracket, Cntrl		Appelez-nous	-
14	R0654178		Screw		Appelez-nous	-
15	R0654183		Screw		Appelez-nous	-
16	R0130667		Canopy, Mica		Appelez-nous	-
17	WP3196557		Screw   (Replaces: R0654182)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
