01 - Control Panel Parts


02 - Oven Parts


03 - Microwave Door Parts

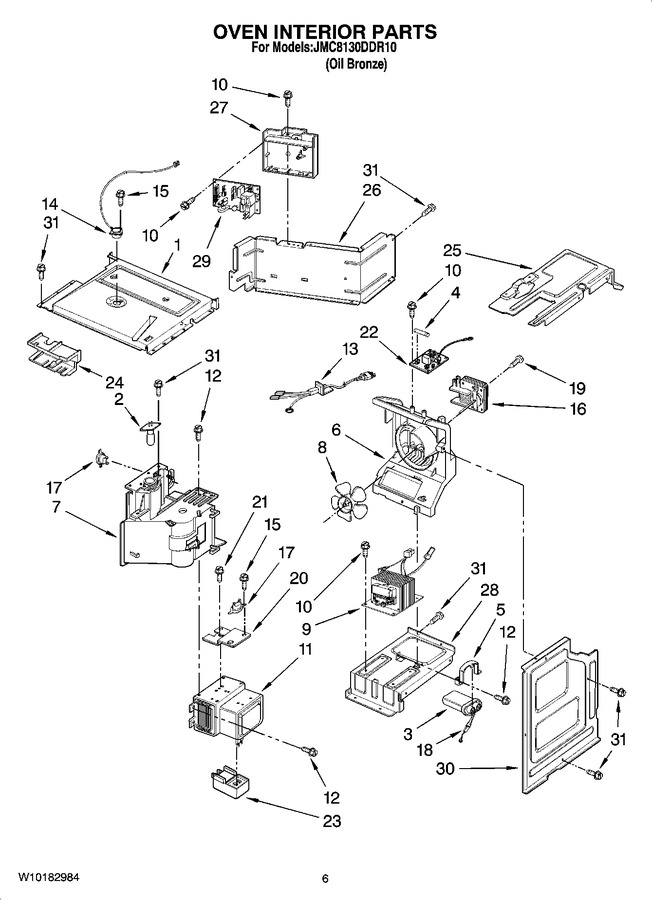

04 - Latch Board Parts


05 - Oven Interior Parts


06 - Turntable Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10153234		Tunnel, Air		Appelez-nous	-
2	WP8183592		Lamp Assembly   (Replaces: 53001266)				$ 41.09
3	WP59001168		Capacitor, H.v.   (Replaces: 59001168)			Immediately	$ 208.35
4	WP8183507		Fuse, 20 Amp   (Replaces: 56001353)				$ 18.33
5	53001248		Bracket, Capacitor		Appelez-nous	-
6	53001250		Guide, Suction		Appelez-nous	-
7	53001251		Duct		Appelez-nous	-
8	53001252		Blade, Fan		Appelez-nous	-
9	53001253		Transformer, H.v.		Appelez-nous	-
10	R0654183		Screw		Appelez-nous	-
11	W10859575		Magnetron   (Replaces: 53001581)				$ 361.62
12	4344826		Screw   (Replaces: R0131029)				$ 14.31
13	53001254		Cord, Power		Appelez-nous	-
14	53001255		Sensor Assembly		Appelez-nous	-
15	R0131307		Screw		Appelez-nous	-
16	53001256		Motor, Fan		Appelez-nous	-
17	R0131025		Thermostat		Appelez-nous	-
18	WP13091701		Cable, Diode   (Replaces: B8383102)				$ 31.71
19	R9800411		Screw		Appelez-nous	-
20	53001258		Bracket, Therm.		Appelez-nous	-
21	R9900293		Screw		Appelez-nous	-
22	53001259		Filter Assembly		Appelez-nous	-
23	53001565		Filter, Choke				$ 27.81
24	53001260		Guide, Air		Appelez-nous	-
25	53001272		Barrier		Appelez-nous	-
26	53001274		Barrier		Appelez-nous	-
27	53001275		Base, Pcb		Appelez-nous	-
28	53001277		Bottom		Appelez-nous	-
29	53001291		Board, Power				$ 187.20
30	53001276		Plate, Shield		Appelez-nous	-
31	R0131246		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
