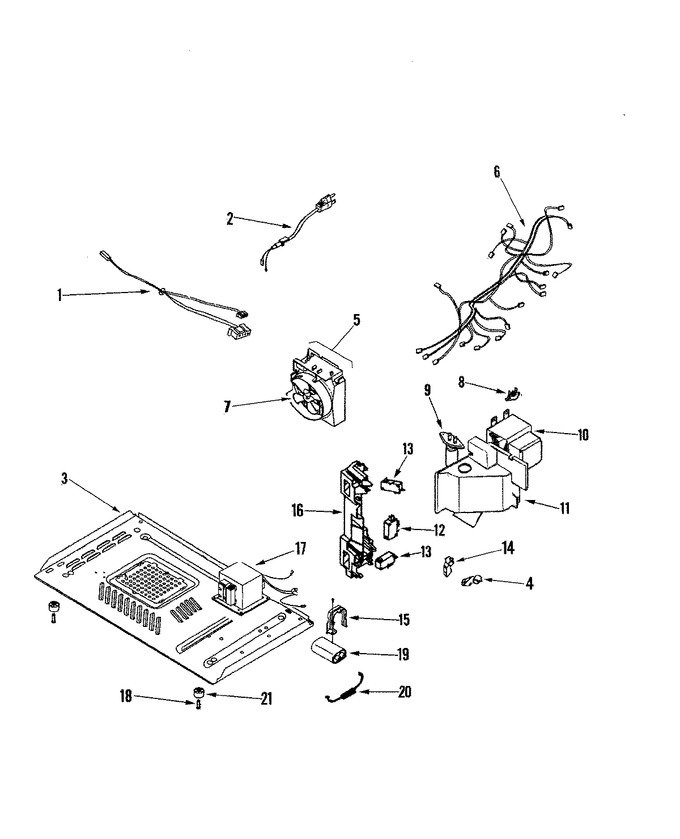

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE96-00315B | Asy-wire Harness Sensor | 10 |
|
- | ||||
| 2 | DE39-10102F | Assy Power Cord | 10 |
|
$ 43.69 | ||||
| 3 | DE80-10032P | Base-plate | 10 |
|
- | ||||
| 4 | DE66-00094A | Lever-switch(b) | 10 |
|
$ 21.43 | ||||
| 5 | DE71-00165A | Cover, Motor | 10 |
|
- | ||||
| 5 | DE31-10155T | Motor-fan | 10 |
|
$ 91.55 | ||||
| 6 | DE96-00500A | Asy-wire Harness A | 10 |
|
- | ||||
| 7 | DE31-90057A | Blade-fan | 10 |
|
$ 17.58 | ||||
| 8 | DE47-20030A | Thermostat | 10 |
|
$ 17.58 | ||||
| 9 | DE01-00166A | Film-lamp | 10 |
|
- | ||||
| 9 | DE07-00006A | Lamp-incandescent | 10 |
|
- | ||||
| 10 | WPW10126794 | Assy-mgt (Replaces: W10126794) | 10 |
|
$ 282.22 | ||||
| 11 | DE63-00348A | Cover-air | 10 |
|
- | ||||
| 12 | 3405-001032 | Switch-micro | 10 |
|
$ 22.17 | ||||
| 13 | 3405-001034 | Switch, Micro (125/250 Vac) | 10 |
|
Immediately | $ 14.85 | |||
| 14 | DE66-00093A | Lever-switch(a) | 10 |
|
$ 16.82 | ||||
| 15 | DE61-50170A | Bracket-hvc | 10 |
|
- | ||||
| 16 | DE66-00117D | Latch-stopper | 10 |
|
$ 1.66 | ||||
| 16 | 555555 | Latch-body (Replaces: DE72-00137F) | 10 |
|
$ 151.94 | ||||
| 16 | DE66-00158A | Latch-stopper(l);mg1480stb/xax | 10 |
|
- | ||||
| 17 | DE26-00123A | Trans H V | 10 |
|
$ 144.00 | ||||
| 18 | DE60-60025A | Pin, Foot | 10 |
|
$ 0.85 | ||||
| 19 | 2501-001011 | Capacitor | 10 |
|
Immediately | $ 74.17 | |||
| 20 | DE91-70063D | Assy-h.v.d. (Replaces: DE91-70063A) | 10 |
|
Immediately | $ 15.89 | |||
| 21 | DE61-40065A | Foot | 10 |
|
$ 17.58 |
