View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base/internal Controls
02 - Body/cavity
03 - Control Panel/door Assembly
04 - Convection Motor
05 - Supplemental Information
SELECT A DIAGRAM
New Model Search:

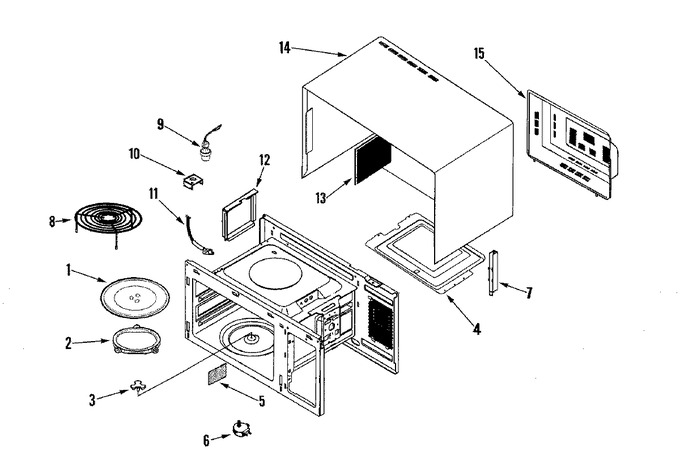

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE74-00023A | Tray-cooking | 10 |
|
Immediately | $ 85.84 | |||
| 2 | DE97-00192C | Asy-guide Roller | 10 |
|
$ 43.17 | ||||
| 3 | DE67-00206A | Coupler | 10 |
|
$ 17.58 | ||||
| 4 | DE61-00795A | Barcket-upper | 10 |
|
- | ||||
| 5 | DE63-00376A | Cover-ceiling | 10 |
|
$ 33.18 | ||||
| 6 | DE31-10104A | Motor-synchronous | 10 |
|
- | ||||
| 7 | DE61-00821A | Bracket-air Guide | 10 |
|
- | ||||
| 8 | DE97-00136H | Asy-wire Rack | 10 |
|
$ 63.42 | ||||
| 9 | DE32-60011A | Sensor-gas | 10 |
|
Immediately | $ 86.27 | |||
| 10 | DE61-50301A | Bracket-cover | 10 |
|
- | ||||
| 11 | DE32-10013A | Sensor-thermistor | 10 |
|
$ 53.69 | ||||
| 12 | DE61-00796A | Bracket-duct Air | 10 |
|
- | ||||
| 13 | DE63-90035G | Cushion-rubber | 10 |
|
- | ||||
| 14 | DE70-30033V | Panel-outer (blk) | 10 |
|
- | ||||
| 15 | DE63-00346A | Cover-back | 10 |
|
- |
