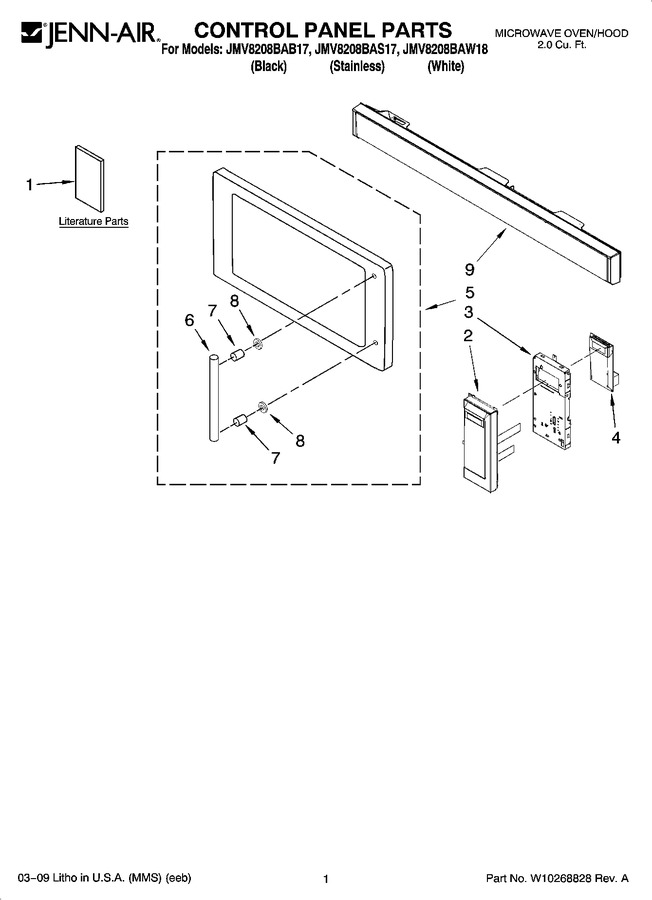

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177936 | U & C Guide |
|
- | |||||
| 1 | W10182044 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01402D | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
$ 209.39 | |||||
| 2 | DE94-01402E | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 2 | DE94-01402F | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
$ 200.48 | |||||
| 3 | W10181469 | Bracket, Control |
|
- | |||||
| 4 | W10182042 | Microcomputer |
|
$ 335.65 | |||||
| 5 | W10187691 | Complete Door (black) |
|
- | |||||
| 5 | W10192094 | Complete Door (white) |
|
- | |||||
| 5 | W10187742 | Complete Door (stainless) |
|
$ 227.72 | |||||
| 6 | W10191856 | Handle, Door |
|
- | |||||
| 7 | W10191857 | Handle, Base |
|
- | |||||
| 8 | W10191858 | Handle, Spacer |
|
- | |||||
| 9 | DE97-00667A | Grille Assembly (black) |
|
$ 114.03 | |||||
| 9 | W10192095 | Grille Assembly (white) |
|
- | |||||
| 9 | W10187743 | Grille Assembly (stainless) |
|
- |
