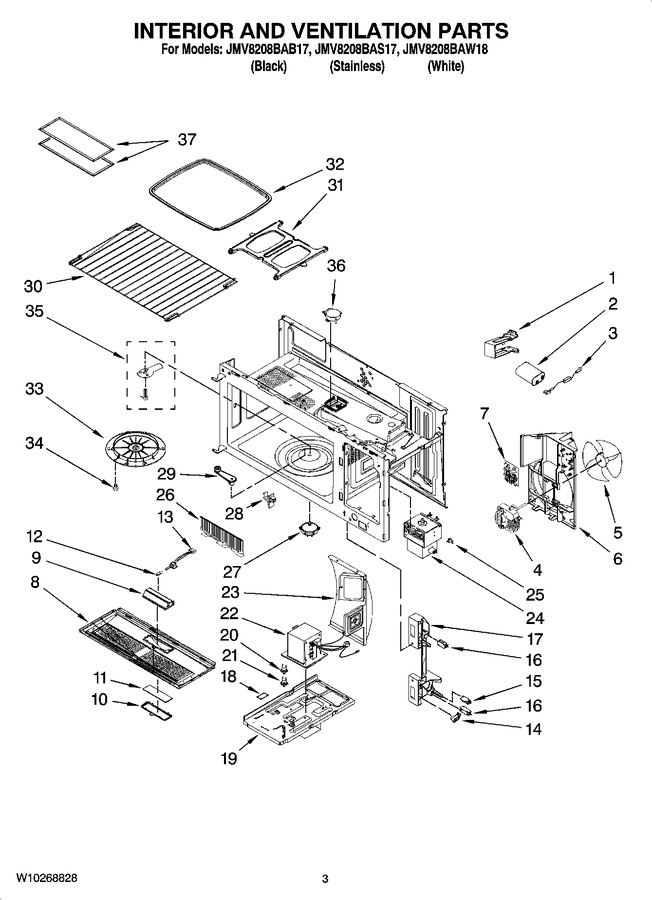

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00115A		Bracket, Capacitor				$ 18.00
2	8206562		Capacitor   (Replaces: 2501-001016)			Immediately	$ 108.83
3	DE91-70063D		Diode, H.v.			Immediately	$ 15.89
4	555555		Motor Fan   (Replaces: DE31-10177E)				$ 151.94
5	DE31-90051A		Blade-fan				$ 6.95
6	DE63-00141A		Guide, Suction		Appelez-nous	-
7	W10182040		Filter, Noise				$ 42.08
8	W10192477		Plate, Bottom (black)				$ 34.71
8	W10192097		Plate, Bottom (white)		Appelez-nous	-
8	DE61-00406B		Plate, Bottom (stainless)				$ 93.56
9	DE61-00407C		Reflector, Lamp				$ 9.10
10	DE47-00032B		Holder, Glass (white)				$ 34.51
10	DE63-00137A		Holder, Glass (black)				$ 34.10
11	DE64-00911A		Glass, Lamp				$ 18.00
12	4713-001165		Lamp-halogen			Immediately	$ 33.30
13	DE47-00032B		Holder, Lamp				$ 34.51
14	DE66-90106B		Lever, Switch				$ 17.58
15	3405-001033		Switch-micro			Immediately	$ 17.58
16	3405-001034		Switch, Micro			Immediately	$ 14.85
17	DE66-00168A		Latch Board			Immediately	$ 18.65
18	DE63-00008F		Cushion-sponge		Appelez-nous	-
19	W10187747		Plate, Base		Appelez-nous	-
20	555555		Sw-thermo   (Replaces: DE47-20059A)				$ 151.94
21	DE47-20034A		Thermostat (2)			Immediately	$ 20.09
22	DE26-00125A		Transformer, H.v.				$ 276.76
23	DE61-00411A		Bracket-duct Rear		Appelez-nous	-
24	WPW10126786		Magnetron   (Replaces: W10126786)				$ 312.35
25	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
26	DE63-00138A		Cover-front		Appelez-nous	-
27	555555		Motor, Turntable   (Replaces: DE31-00040A)				$ 151.94
28	DE61-00375A		Hook, Rack				$ 17.58
29	DE67-00215A		Coupler, Glider		Appelez-nous	-
30	W10182049		Rack, Wire		Appelez-nous	-
31	DE61-00855A		Guide-tray		Appelez-nous	-
32	DE63-00383A		Tray-cooking				$ 131.79
33	W10258285		Cover-stirrer		Appelez-nous	-
34	DE66-20095B		Button-lock				$ 17.58
35	DE97-00631A		Stirrer, Assembly		Appelez-nous	-
36	DE31-10173A		Motor-drive				$ 54.87
37	6802A		Filter, Air   (Replaces: W10187748)			Immediately	$ 28.96
